Product Highlights

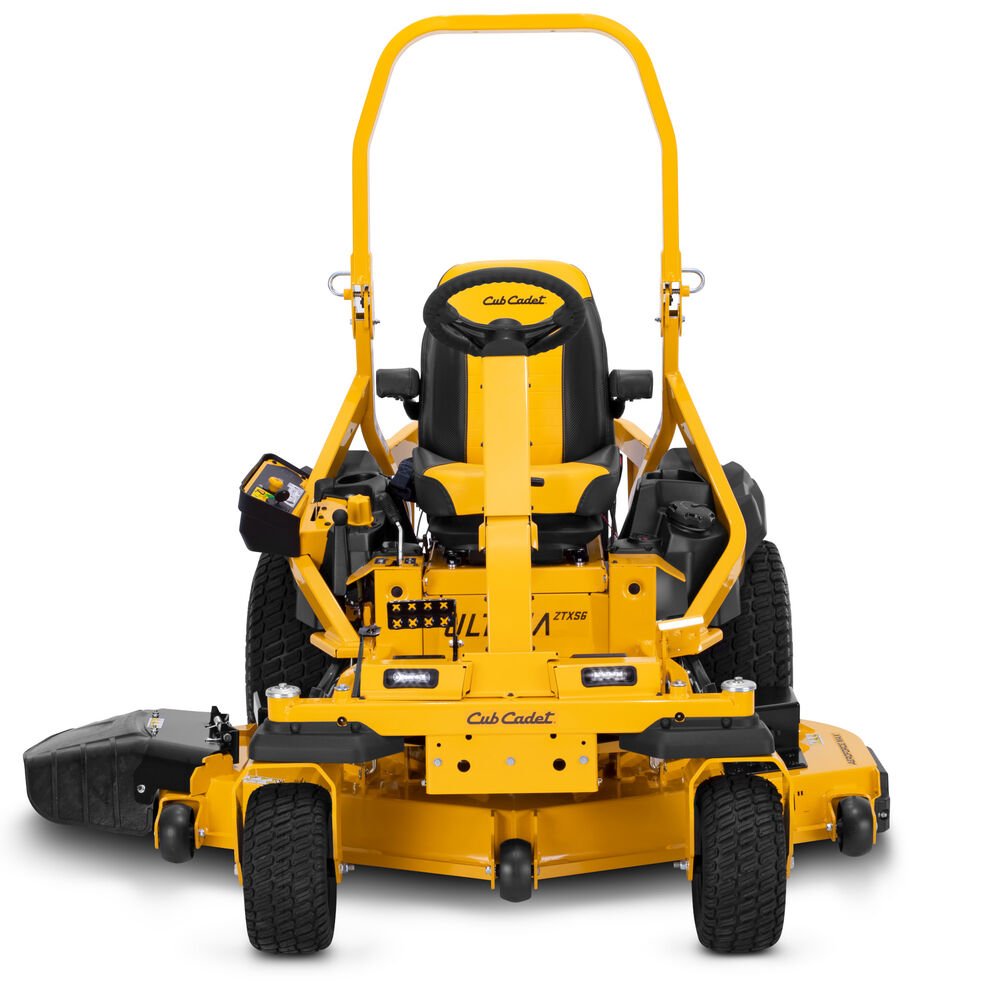

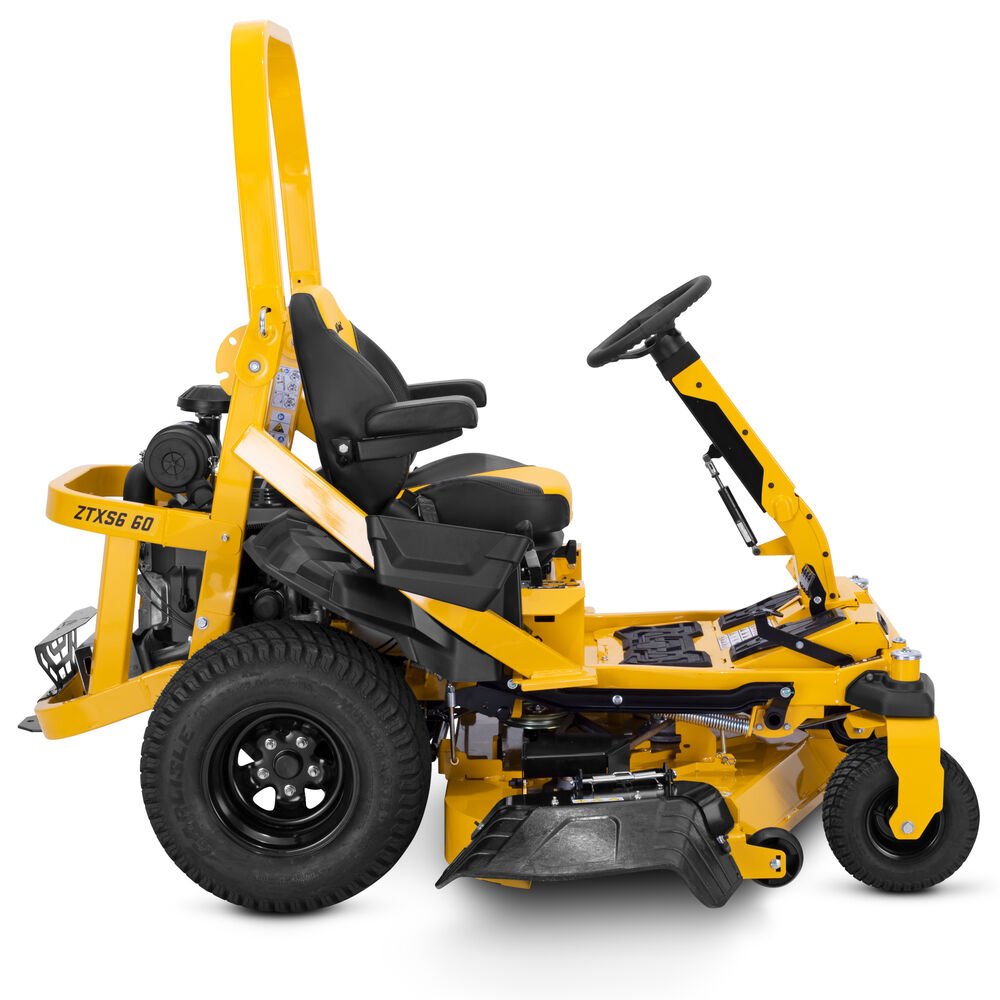

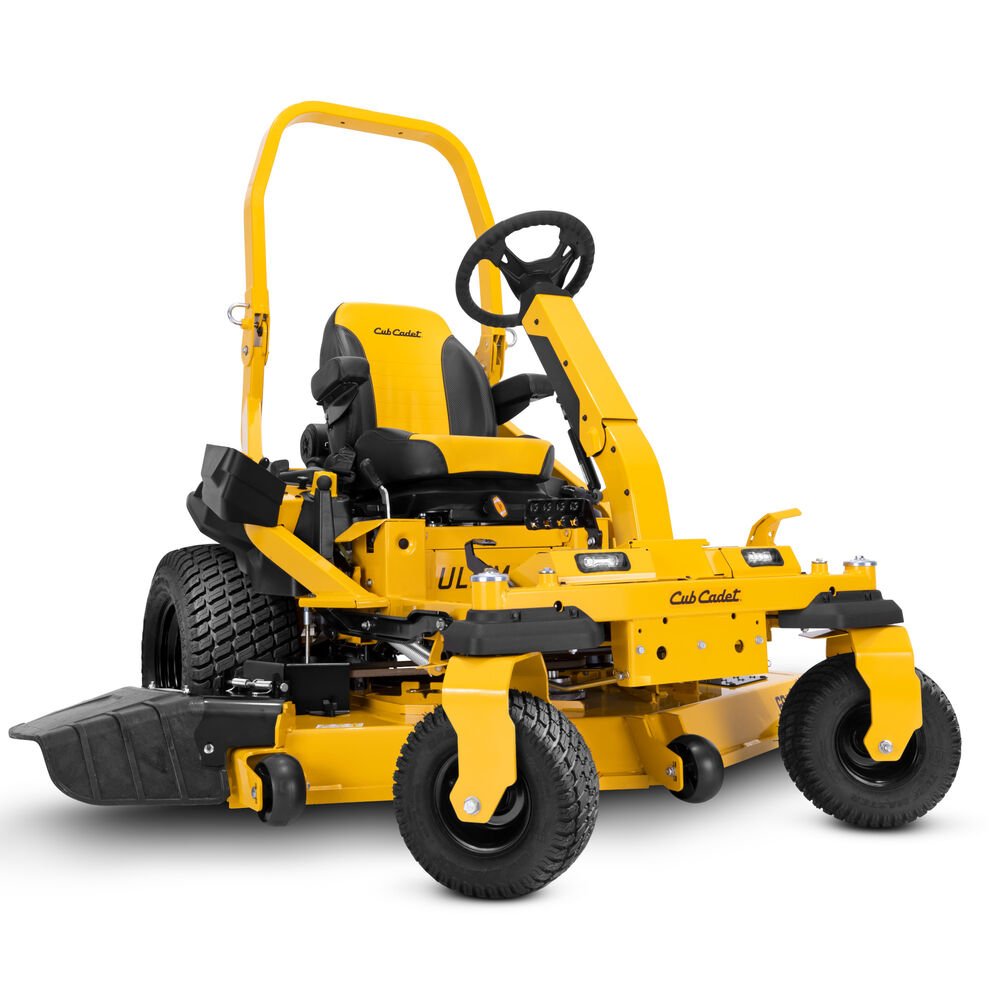

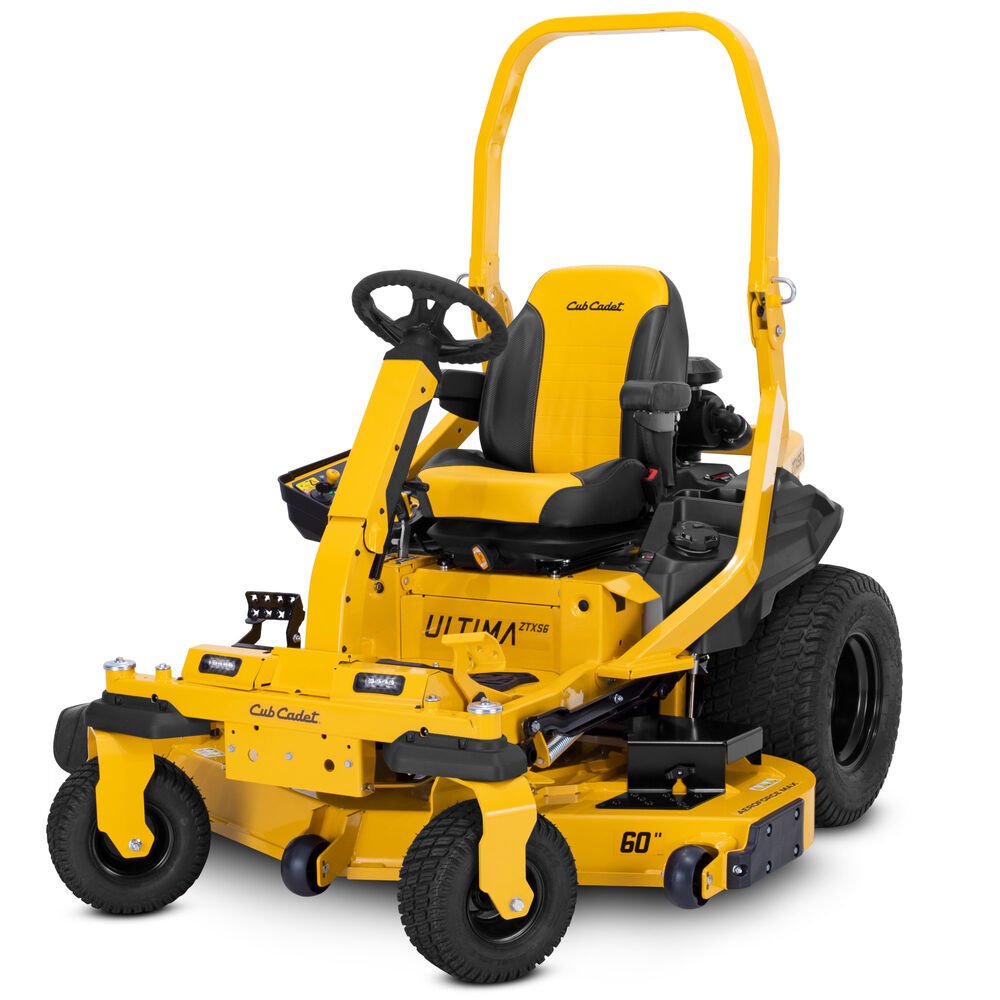

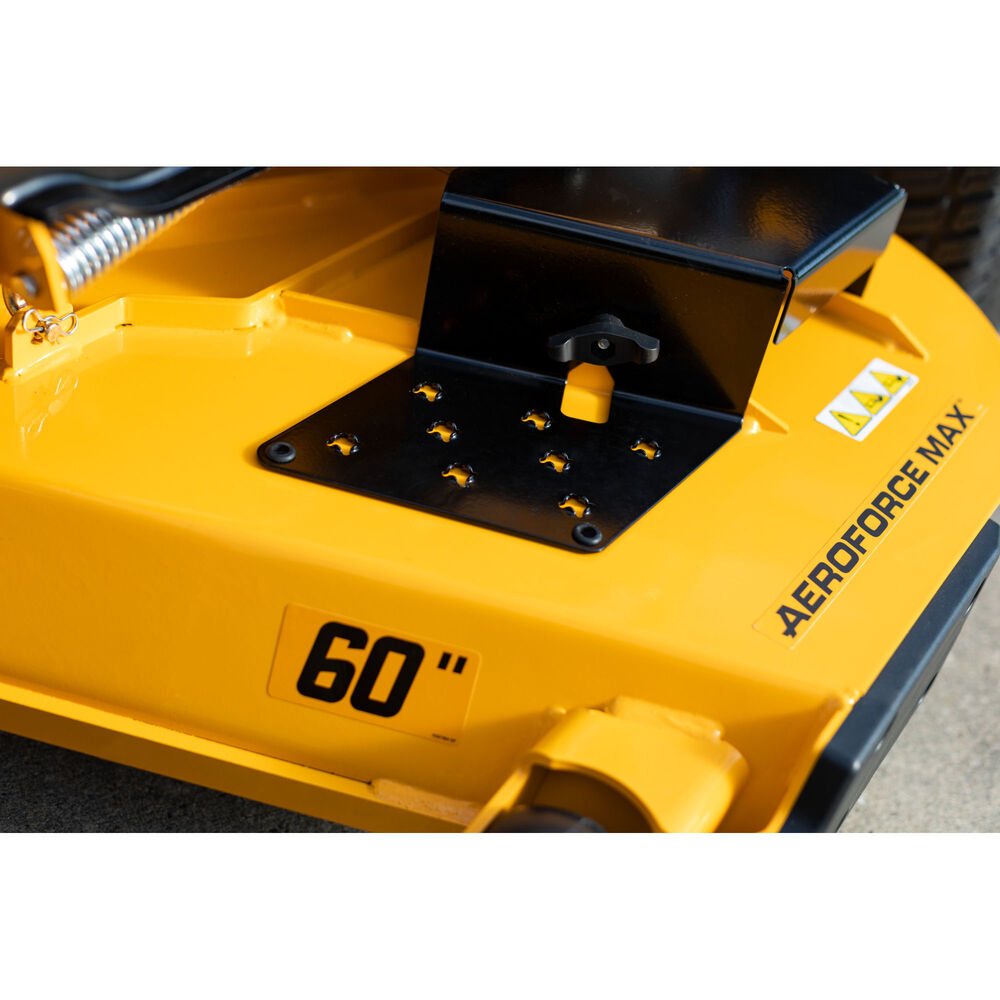

Cub Cadet® Ultima Series ZTXS6 60 60-in. 25.5 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Synchro-Steer offers 4-wheel control designed to provide stability for straight line mowing on hillsides and slopes up to 20-degrees.
Features

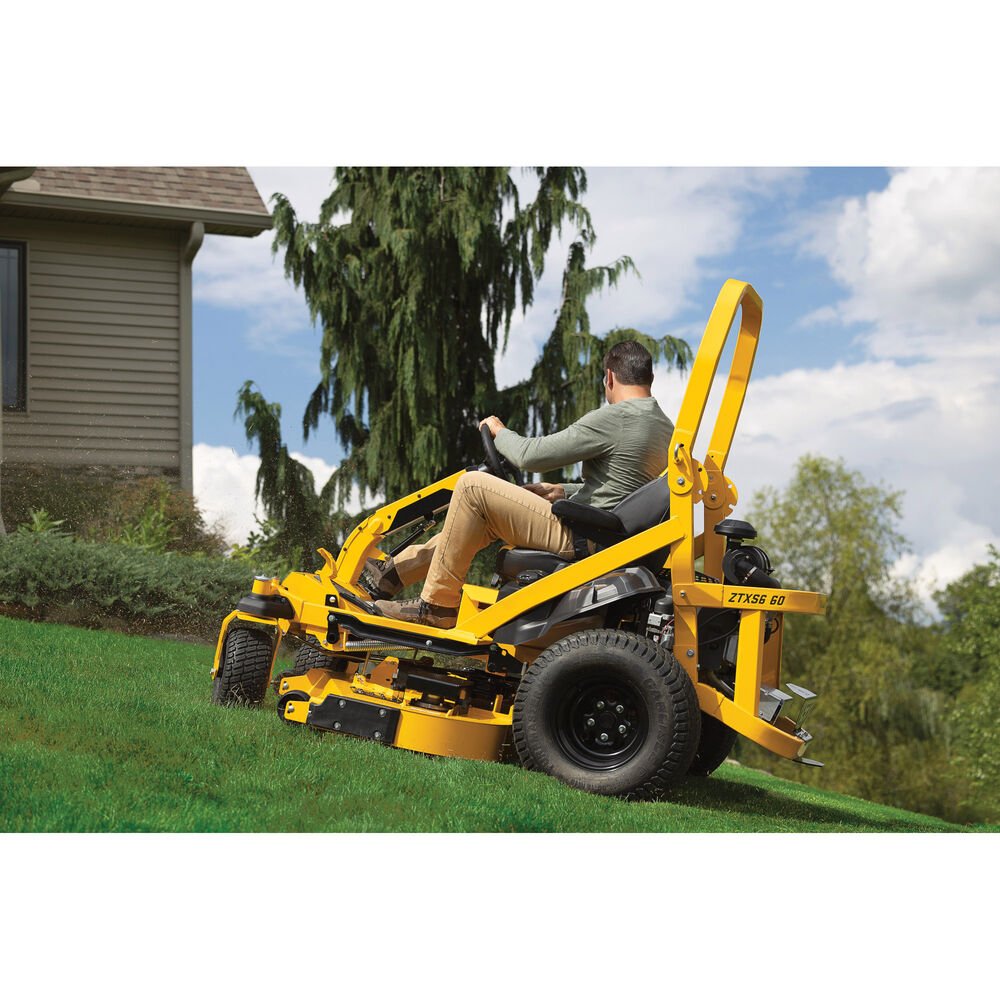

- Synchro-Steer™ technology offers 4-wheel control helps and provides stability for straight-line mowing on hillsides and slopes up to 20°
- A 25.5 HP* Kawasaki FX801 V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Commercial grade dual hydrostatic rear-wheel transmissions for quick and easy mowing up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.
Specifications
Engine
-
Engine Brand: Kawasaki®
-
Engine Model: FX Series
-
Engine Model Number: 801V
-
Engine Displacement: 852cc
-
Engine Output: 25.5HP
-
Starter Type: Electric
-
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
-
Cylinders: Twin
-
Engine Start: Ignition Key
-
Engine Oil Capacity2.1 qt US ( 2 L)
-
Lubrication: Fully pressurized
-
Charging System:15 amp regulated
-
Fuel Gauge: Yes
-
Governor: Mechanical
-
Choke: Separate Choke
-
Air Filter: Single element
-
Oil Filter: Yes
-
Fuel Delivery: Carburetor
Battery
-
Battery: 210 CCA
-
Battery Type: AGM (Absorbent Glass Mat)
-
Battery Voltage: 12V
Drive System
-
Transmission: Hydro-Gear ZT 3400 Charged
-
Forward Speed: 9 MPH / 14.5 km/h
-
Reverse Speed: 3.5 MPH / 5.6 km/h
-
Drive System: Hydrostatic
Cutting Deck
-
Deck Cutting Width: 60 in
-
Deck Wash: No
-
Deck Material: 10-gauge steel with 2-gauge reinforcement
-
Deck Engagement (PTO): Electric
-
Deck Construction: Fabricated
-
Blade(s): Three
-

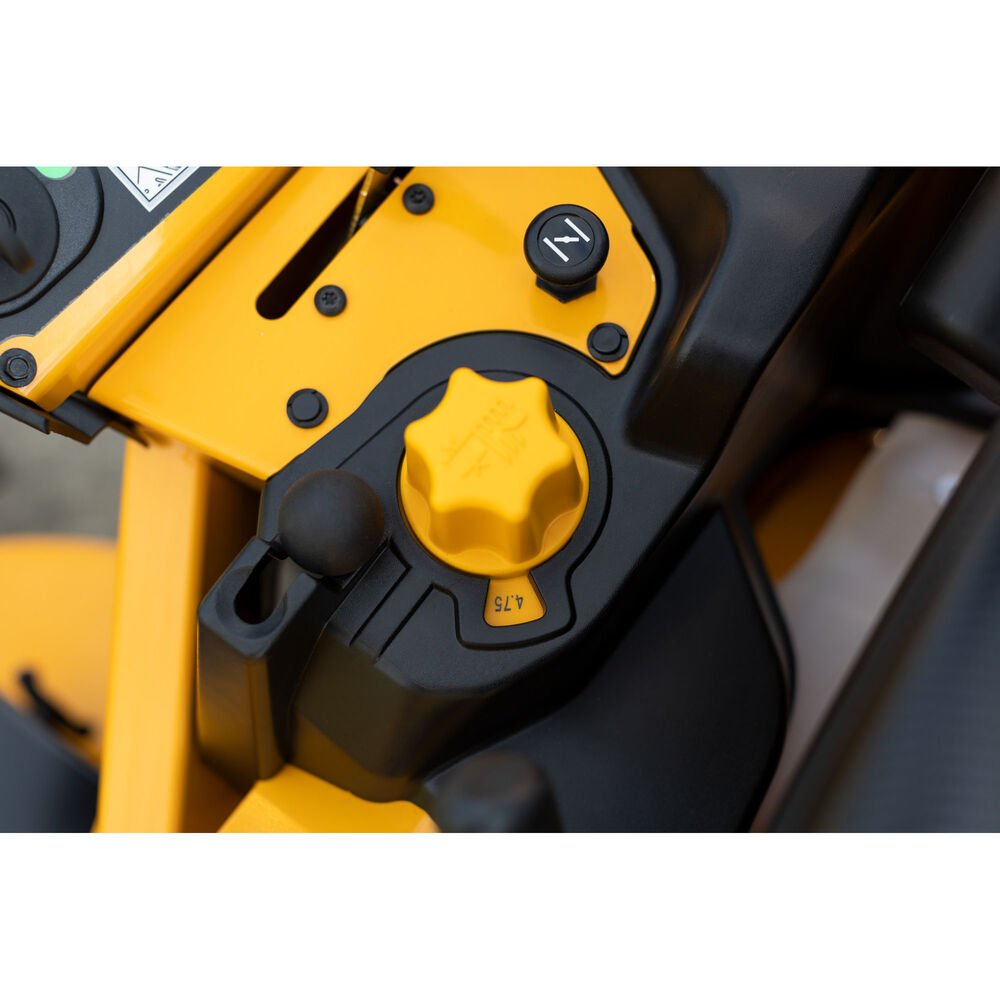

Deck Lift: Foot pedal with Dial Adjust
-
Cutting Height Range: 1" - 4.75"
-
Anti-Scalping: Three gauge wheels
-
Deck Positions: 17
Chassis
-

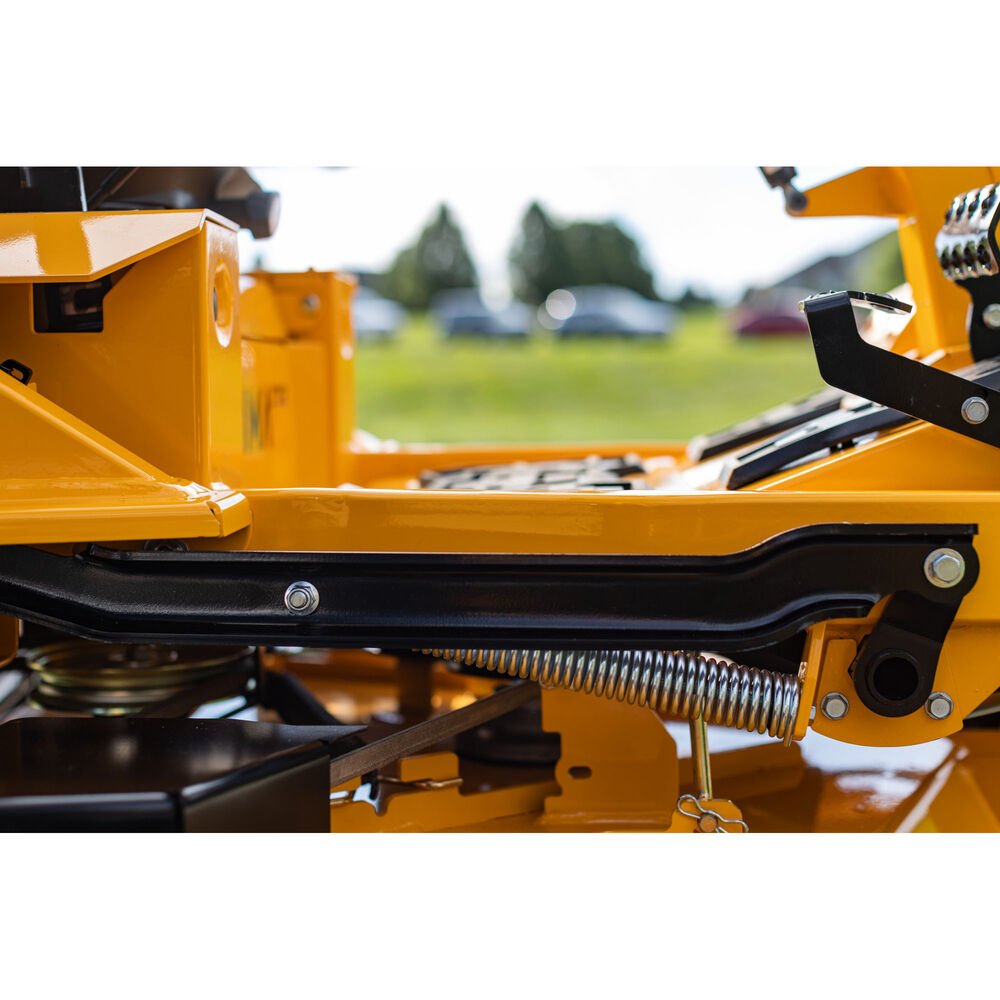

Frame: 1.5" x 3" tubular steel
-
Turning Radius: 0°
-
ROPS: Yes
-
Rear Tow Hitch: Yes
-
Corrosion Protection: Yes
Controls
-
Cruise Control: No
-
Brakes: Disc
-
Steering Control: Steering Wheel
Comfort
-

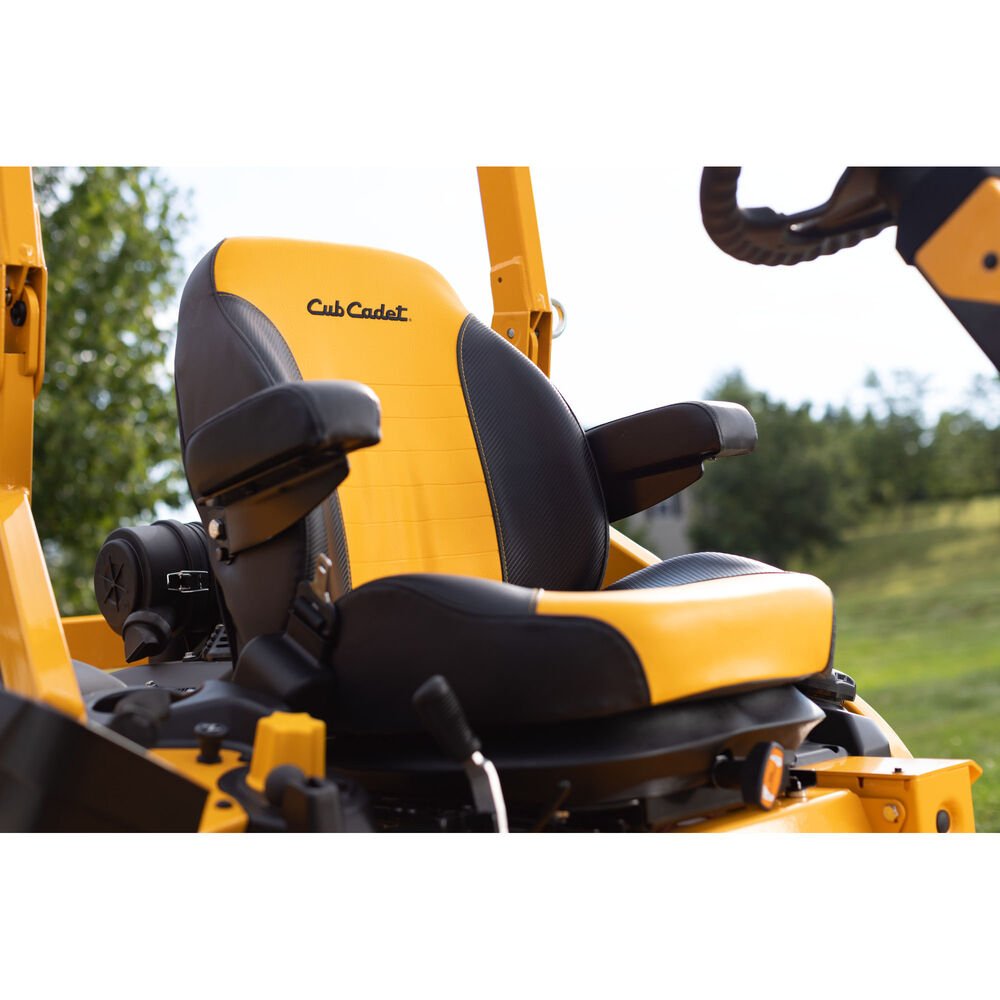

Seat Type: 24" high back
-
Armrests: Yes
-
Seat Adjustment: Lever
-
Front Caster Suspension: No
Wheels
-
Rear Tires: 24"x 12"-12"
-
Front Tires: 13"x 6.5"-6"
-
Tire Tread: Turf Master / Multi Trac
Specifications
-
Series: Ultima Series™ ZTXS
Additional Specifications
-
Hour Meter: Yes
-
Mulch Kit: Available separately
-
Headlight(s): Dual-LED
-
Cup Holder: Yes
-
Operator Presence System: Yes
-

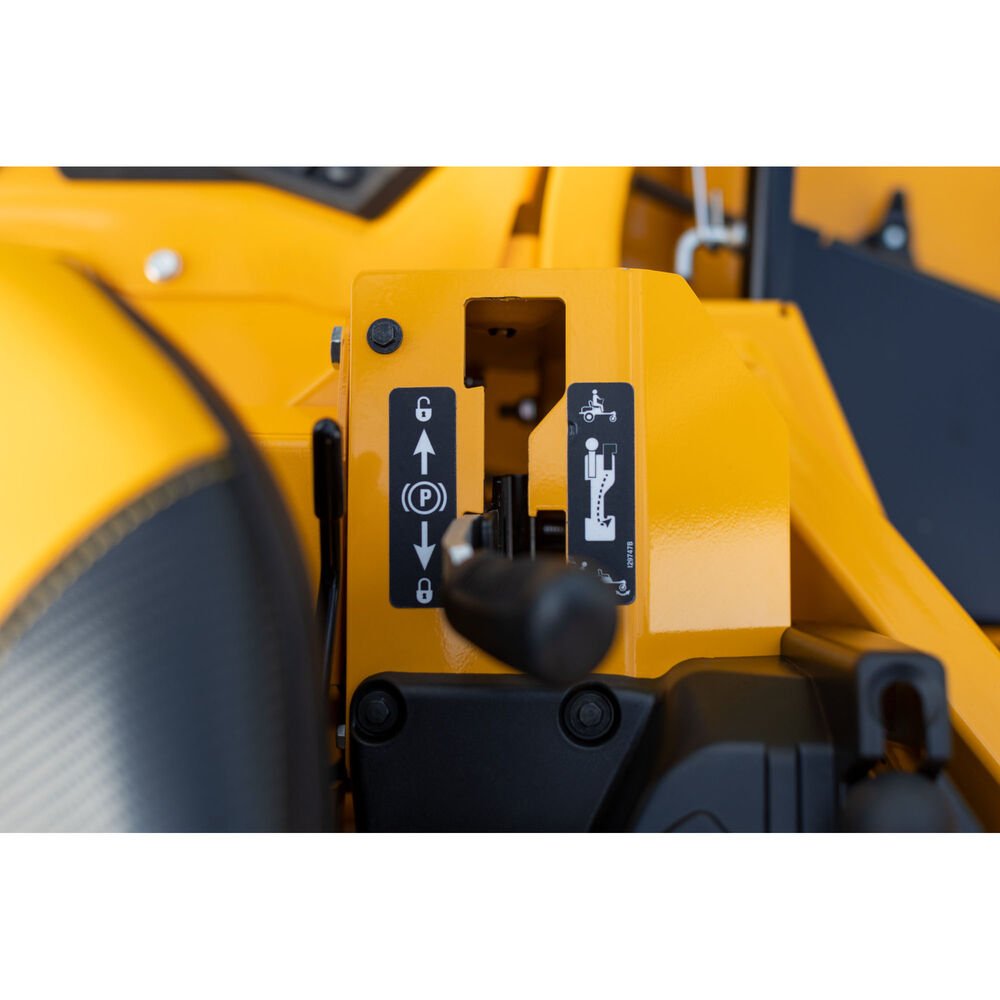

Parking Brake: Foot Controlled
-
Model Number: 47RICHB8A10
Warranty
-
Residential Warranty: 4-year 800 hours
-
Frame Warranty: Lifetime Limited
-
Deck Shell Warranty: Lifetime limited
-
Commercial Warranty: 4-year 800 hours
Disclaimers
-
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
-
Horsepower: As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
