Product Highlights

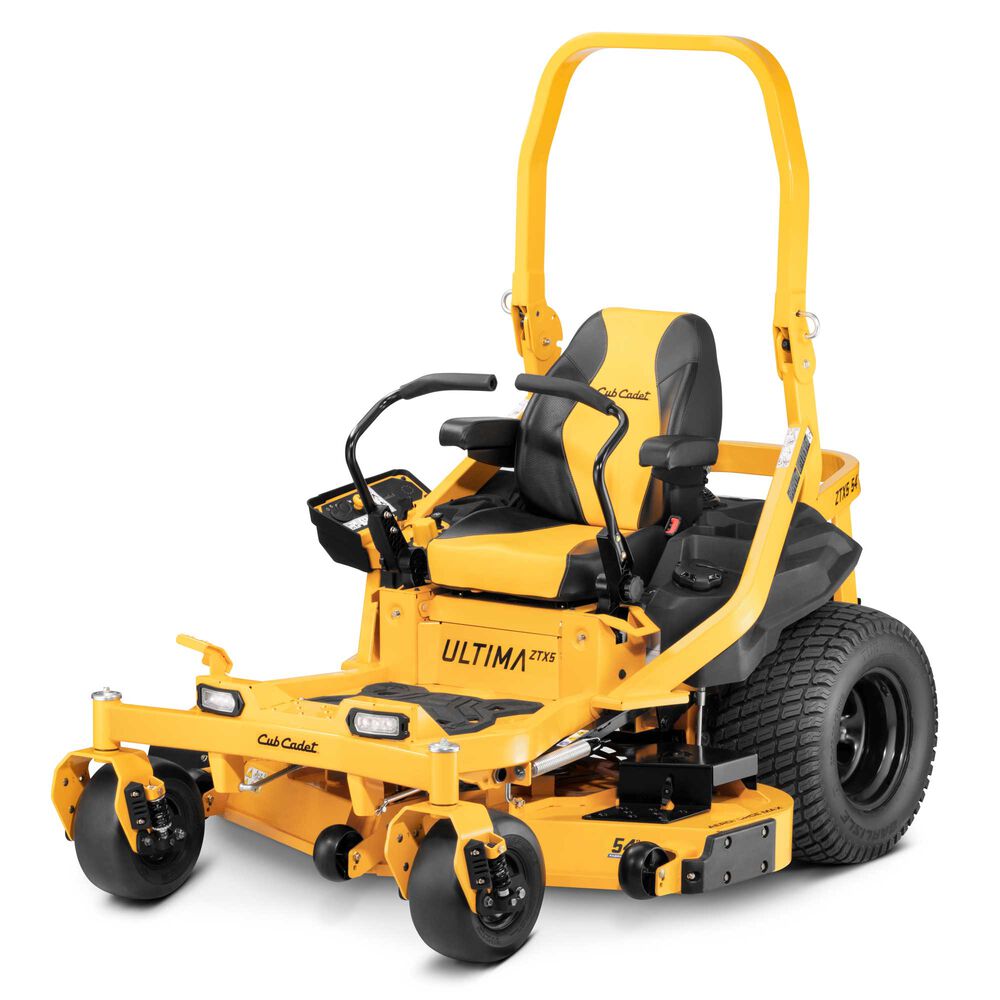

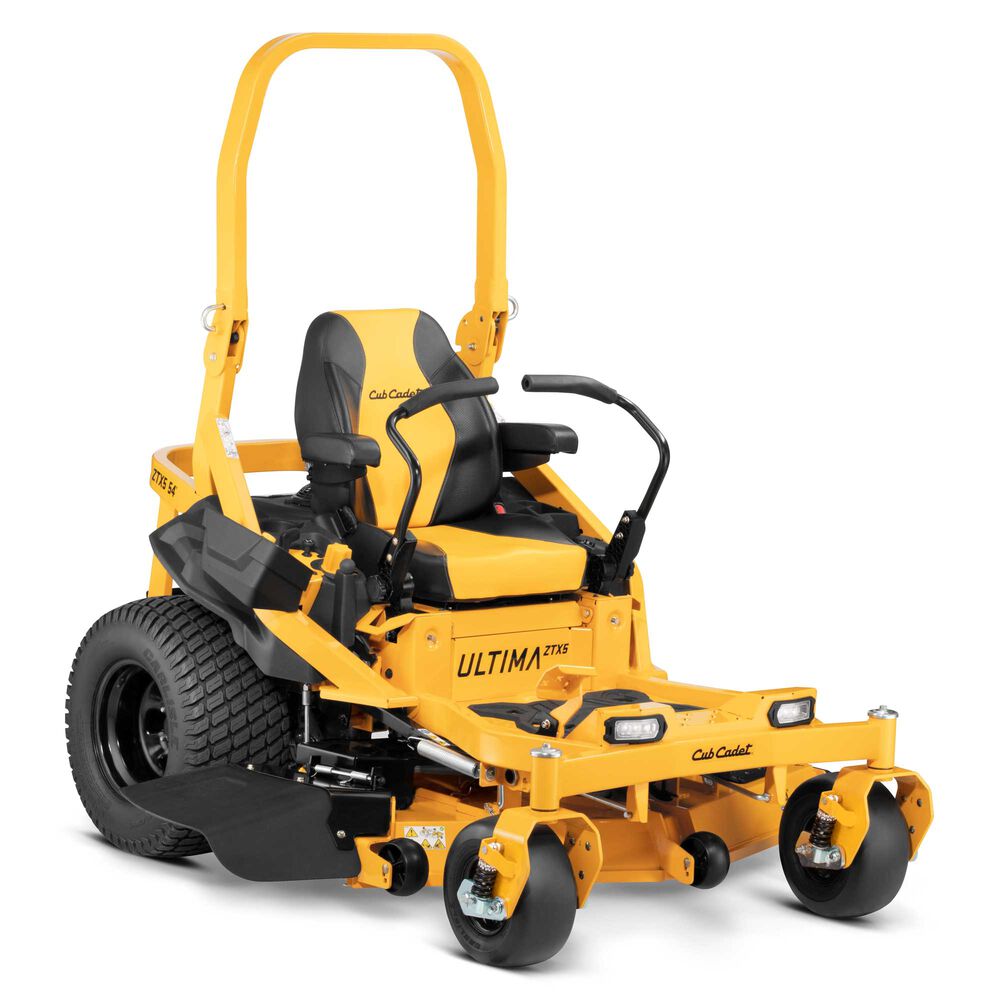

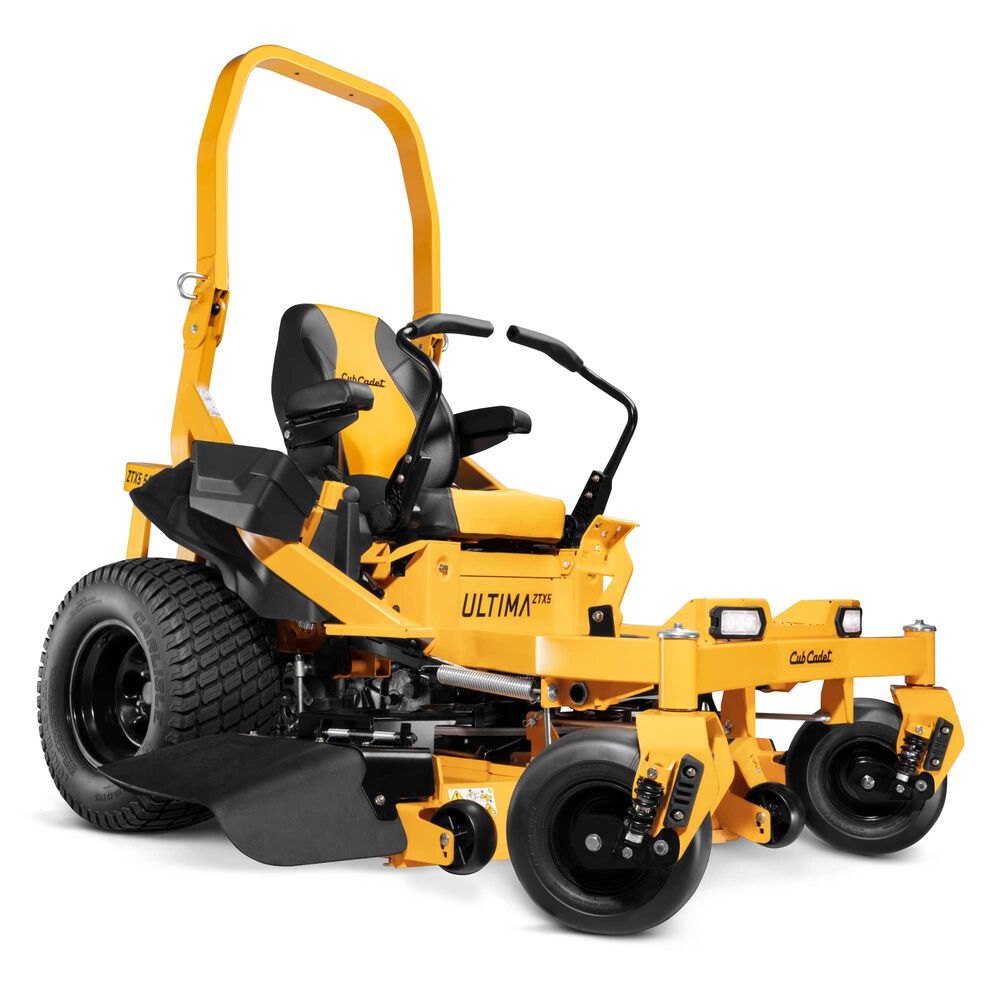

The Cub Cadet® Ultima Series ZTX5 54 54-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
Features
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a powerful 24 HP* Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
Specifications
Engine
-
Engine Brand: Kawasaki®
-
Engine Mode: lFS Series
-
Engine Model Number: 730V
-
Engine Displacement: 726cc
-
Engine Output: 24HP
-
Starter Type: Electric
-
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
-
Cylinders: Twin
-
Engine Start: Ignition Key
-
Engine Oil Capacity: 2.1 qt US ( 2 L)
-
Lubrication: Fully pressurized
-
Charging System12 amp regulated
-
Fuel Gauge: Yes
-
Governor: Mechanical
-
Choke: Separate Choke
-
Air Filter: Single element
-
Oil Filter: Yes
-
Fuel Delivery: Carburetor
Battery
-
Battery: 210 CCA
-
Battery Type: AGM (Absorbent Glass Mat)
-
Battery Voltage: 12V
Drive System
-
Transmission: Hydro-Gear ZT 3200
-
Forward Speed: 8.5 MPH / 13.7 km/h
-
Reverse Speed: 3.5 MPH / 5.6 km/h
-
Drive System: Hydrostatic
Cutting Deck
-
Deck Cutting Width: 54 in
-
Deck Wash: No
-
Deck Material: 10-gauge steel with 2-gauge reinforcement
-
Deck Engagement (PTO): Electric
-
Deck Construction: Fabricated
-
Blade(s): Three
-
Deck Lift: Foot pedal with Dial Adjust
-
Cutting Height Range: 1" - 4.75"
-
Anti-Scalping: Three gauge wheels
-
Deck Positions: 17
Chassis
-
Frame: 1.5" x 3" tubular steel
-
Turning Radius: 0°
-
ROPS: Yes
-
Rear Tow Hitch: Yes
-
Corrosion Protection: Yes
Controls
-
Cruise Control: No
-
Brakes: Disc
-
Steering Control: Lap Bars
Comfort
-
Seat Type: 24" high back
-
Armrests: Yes
-
Seat Adjustment: Lever
-
Front Caster Suspension: Yes
Wheels
-
Rear Tires: 23"x 12"-12"
-
Front Tires: 13"x 6.5"-6"
-
Tire Tread: Turf Master / Multi Trac
Specifications
-
Series: Ultima Series™ ZTX
Additional Specifications
-
Hour Meter: Yes
-
Mulch Kit: Available separately
-
Headlight(s): Dual-LED
-
Cup Holder: Yes
-
Operator Presence System: Yes
-
Parking Brake: Lap Bar Integrated
-
Model Number: 47RKAAA7A10
Warranty
-
Residential Warranty: 4-year 800 hours
-
Frame Warranty: Lifetime Limited
-
Deck Shell Warranty: Lifetime limited
-
Commercial Warranty: 4-year 800 hours
Disclaimers
-
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
-
Horsepower: As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
