Product Highlights

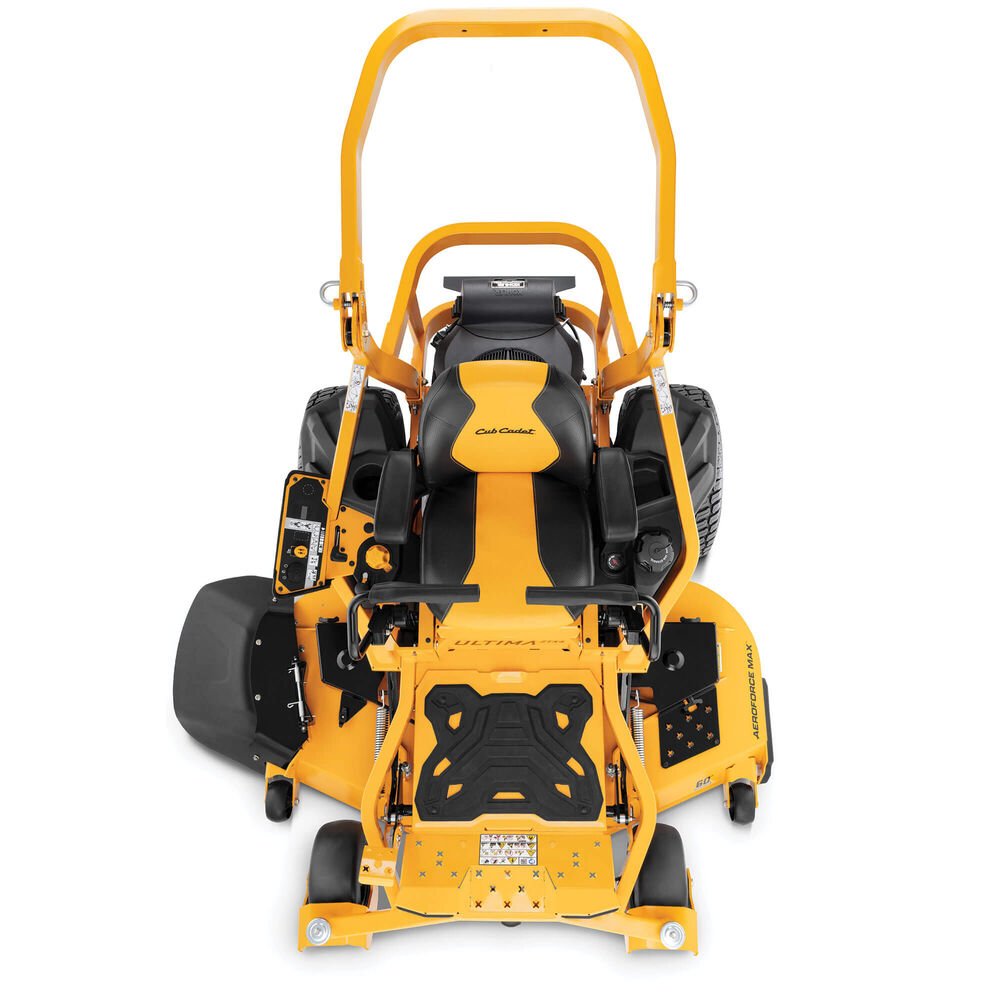

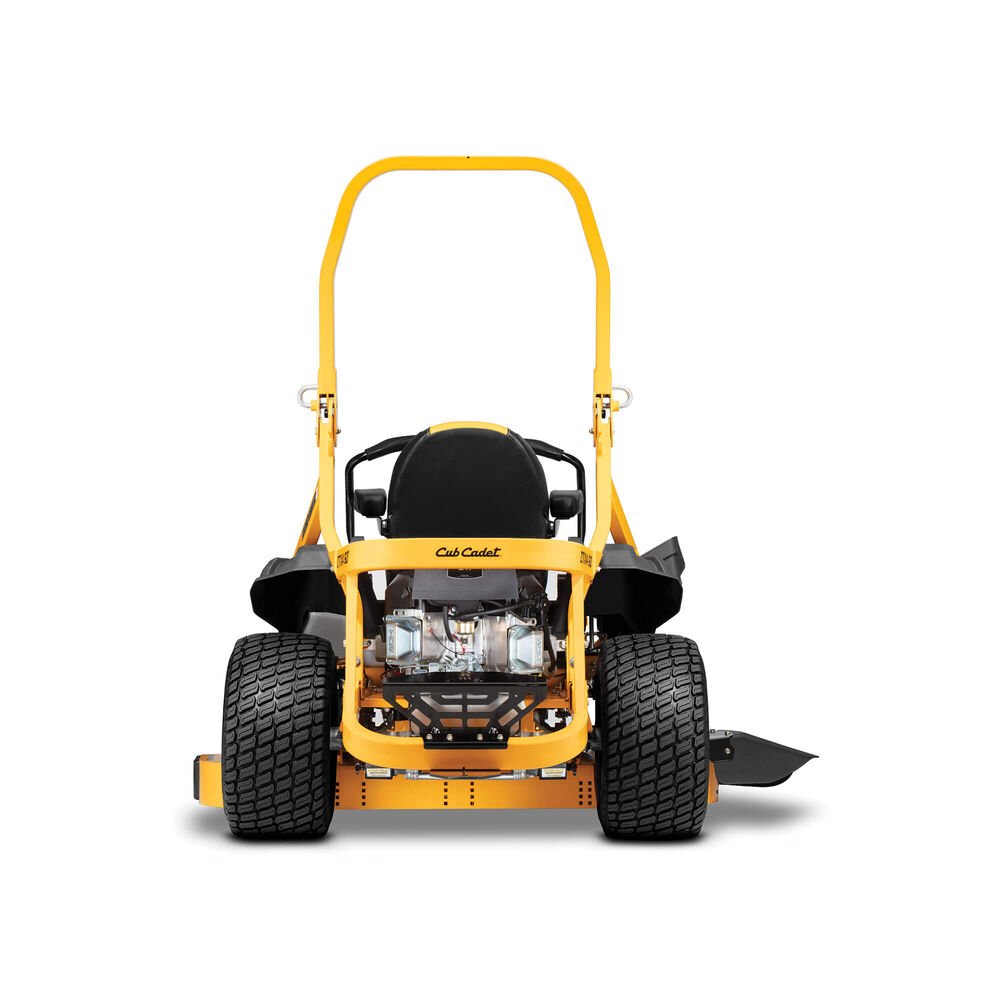

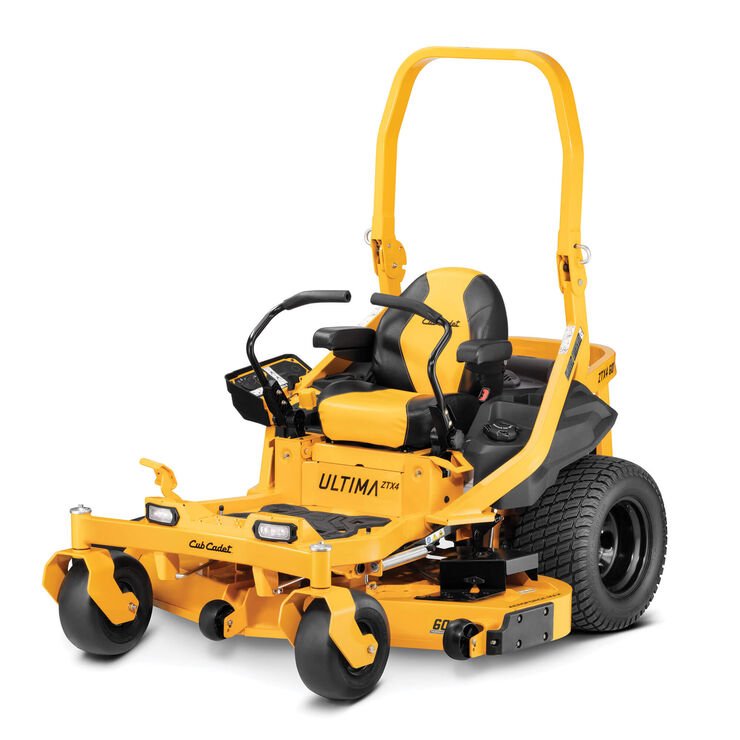

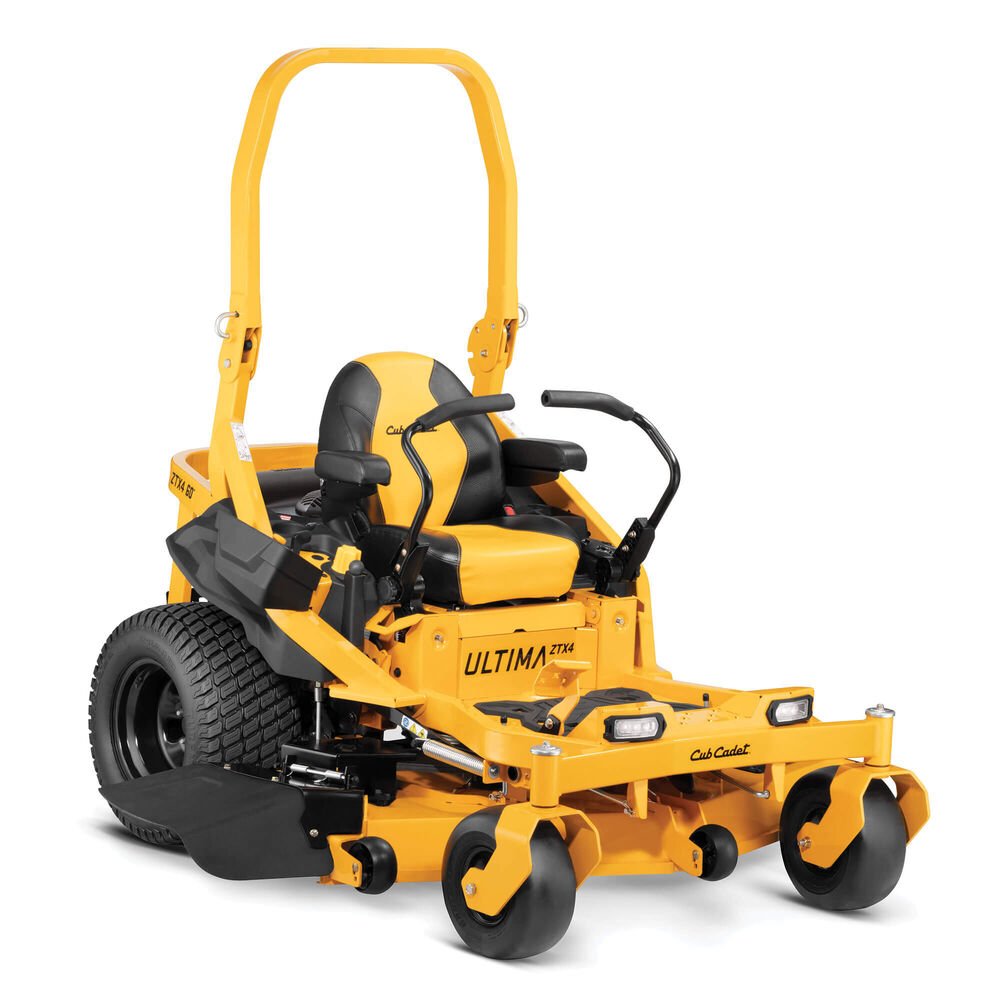

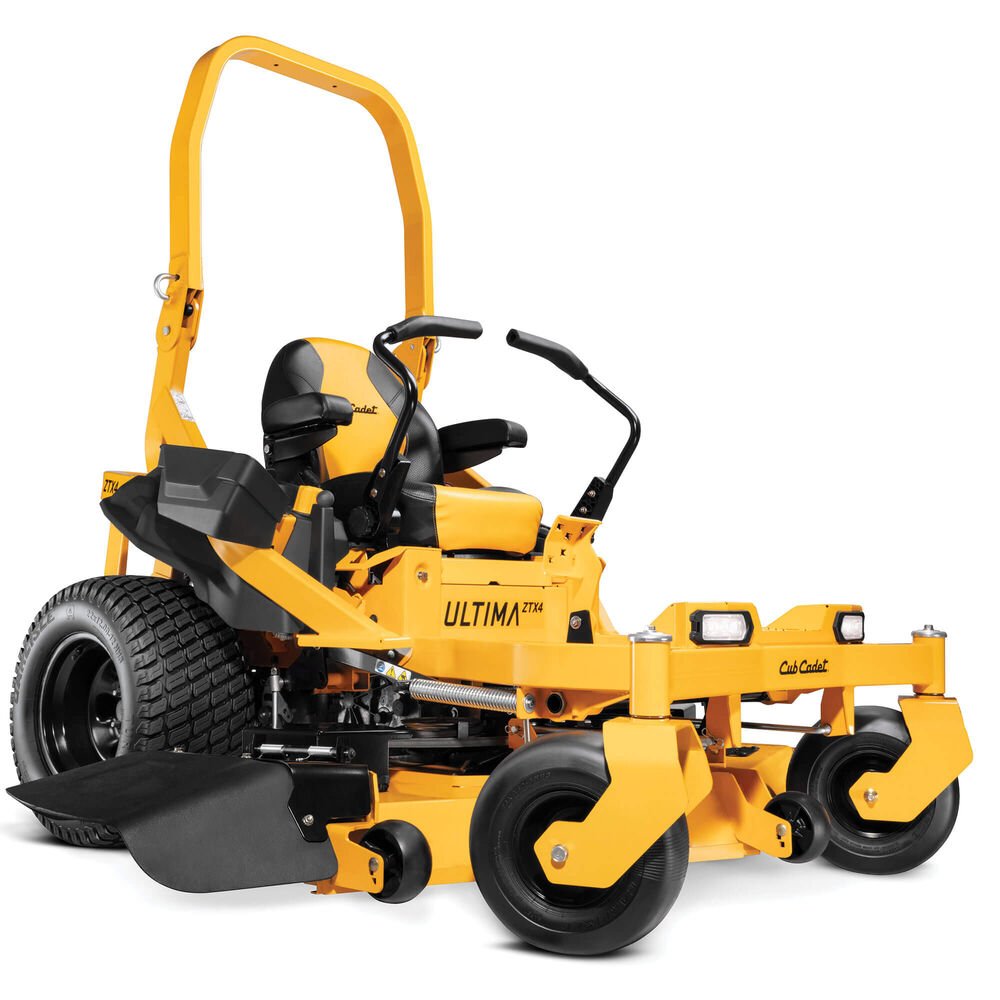

Cub Cadet® Ultima Series ZTX4 60 60-in. 26 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish
Features

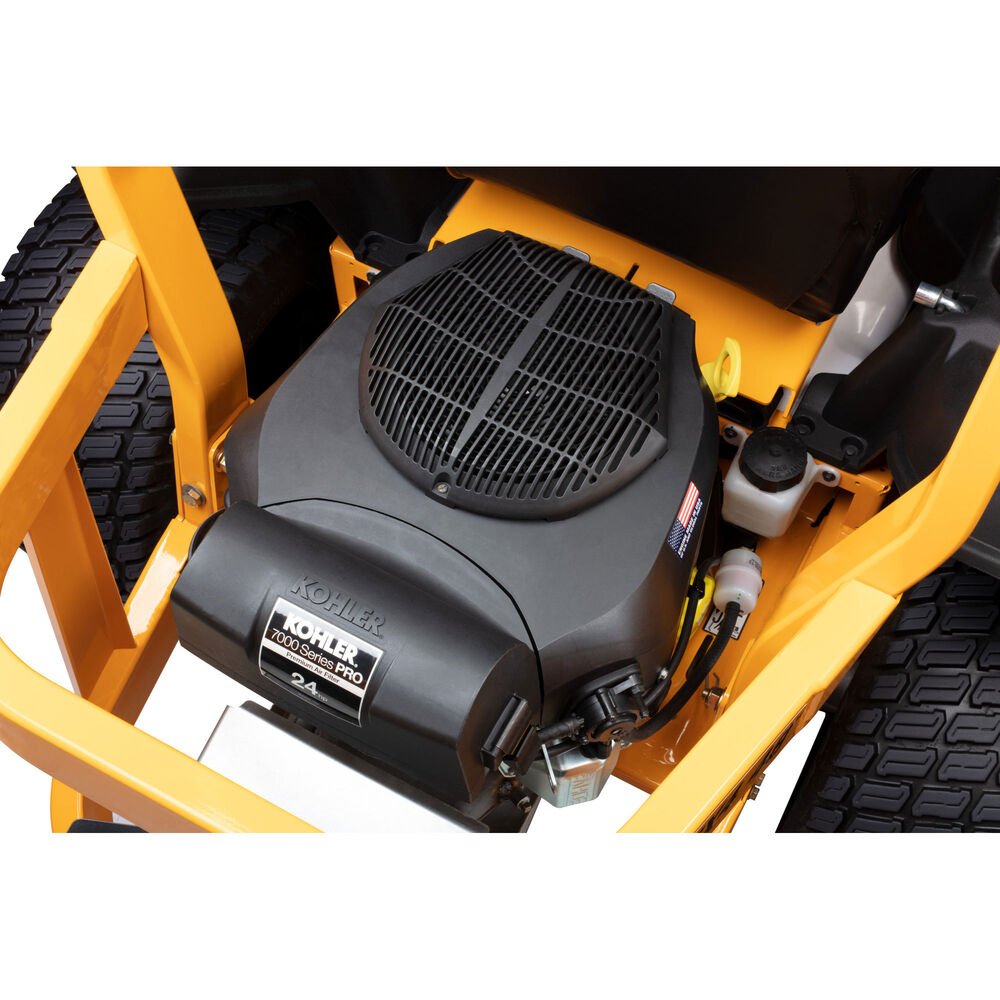

- 26 HP* 747cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
- Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds
- A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
Specifications
Engine
-
Engine Brand: Kohler®
-
Engine Model: Pro 7000 series
-
Engine Model Number: KT745
-
Engine Displacement: 747cc
-
Engine Output: 26HP
-
Starter Type: Electric
-
Fuel Tank Capacity: 5.5 US gal. / 20.80 L
-
Cylinders: Twin
-
Engine Start: Ignition Key
-
Engine Oil Capacity: 2.0 qts. US (1.89 L)
-
Lubrication: Fully pressurized
-
Charging System: 12 amp regulated
-
Fuel Gauge: No
-
Governor: Mechanical
-
Choke: Separate Choke
-
Air Filter: Dual element
-
Oil Filter: Yes
-
Fuel Delivery: Carburetor
Battery
-
Battery: 210 CCA
-
Battery Type: AGM (Absorbent Glass Mat)
-
Battery Voltage: 12V
Drive System
-
Transmission: Hydro-Gear ZT 3100
-
Forward Speed: 8 MPH / 12.9 km/h
-
Reverse Speed: 3.5 mph / 5.6 km/h
-
Drive System: Hydrostatic

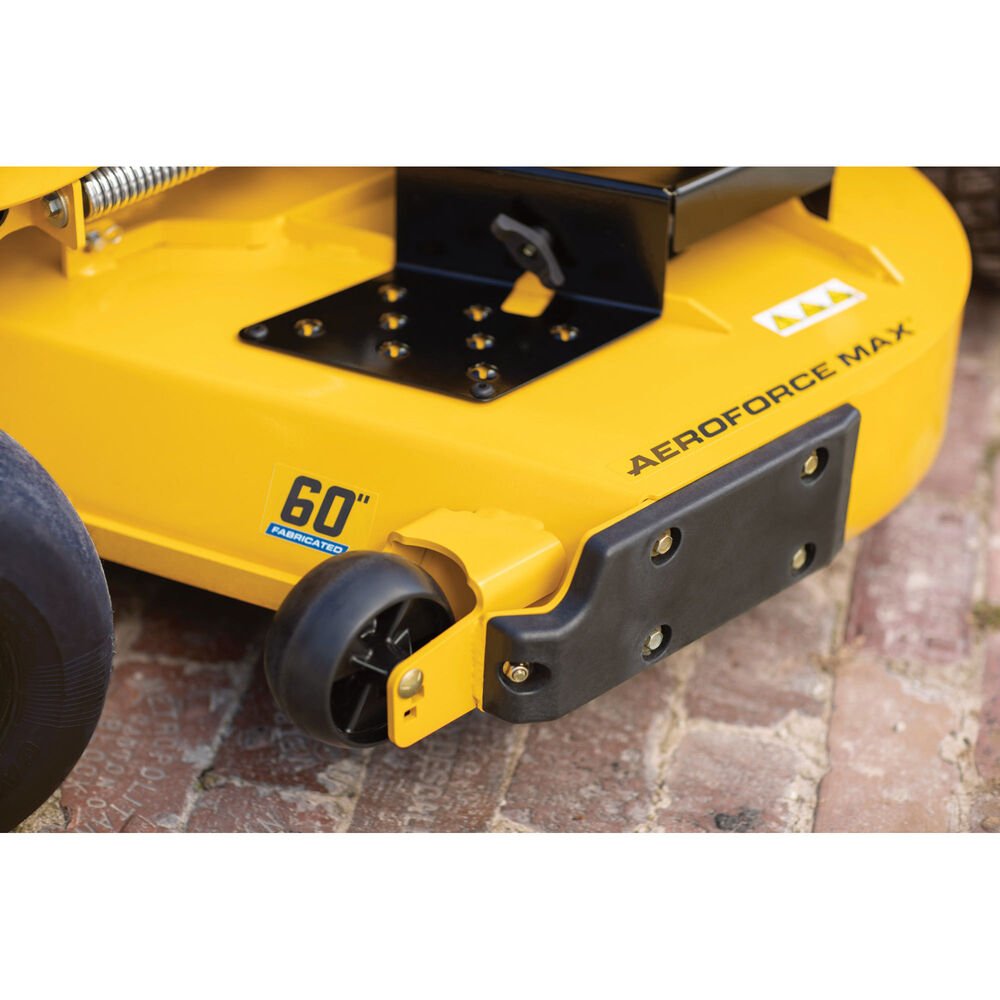

Cutting Deck
-
Deck Cutting Width: 60 in
-
Deck Wash: No
-
Deck Material: 10-gauge steel with 2-gauge reinforcement
-
Deck Engagement (PTO: )Electric
-
Deck Construction: Fabricated
-
Blade(s): Three
-
Deck Lift: Foot pedal with Dial Adjust
-
Cutting Height Range: 1" - 4.75"
-
Anti-Scalping: Three gauge wheels
-
Deck Positions: 17
Chassis
-
Frame: 1.5" x 3" tubular steel
-
Turning Radius: 0°
-
ROPS: Yes
-
Rear Tow Hitch: Yes
-
Corrosion Protection: Yes

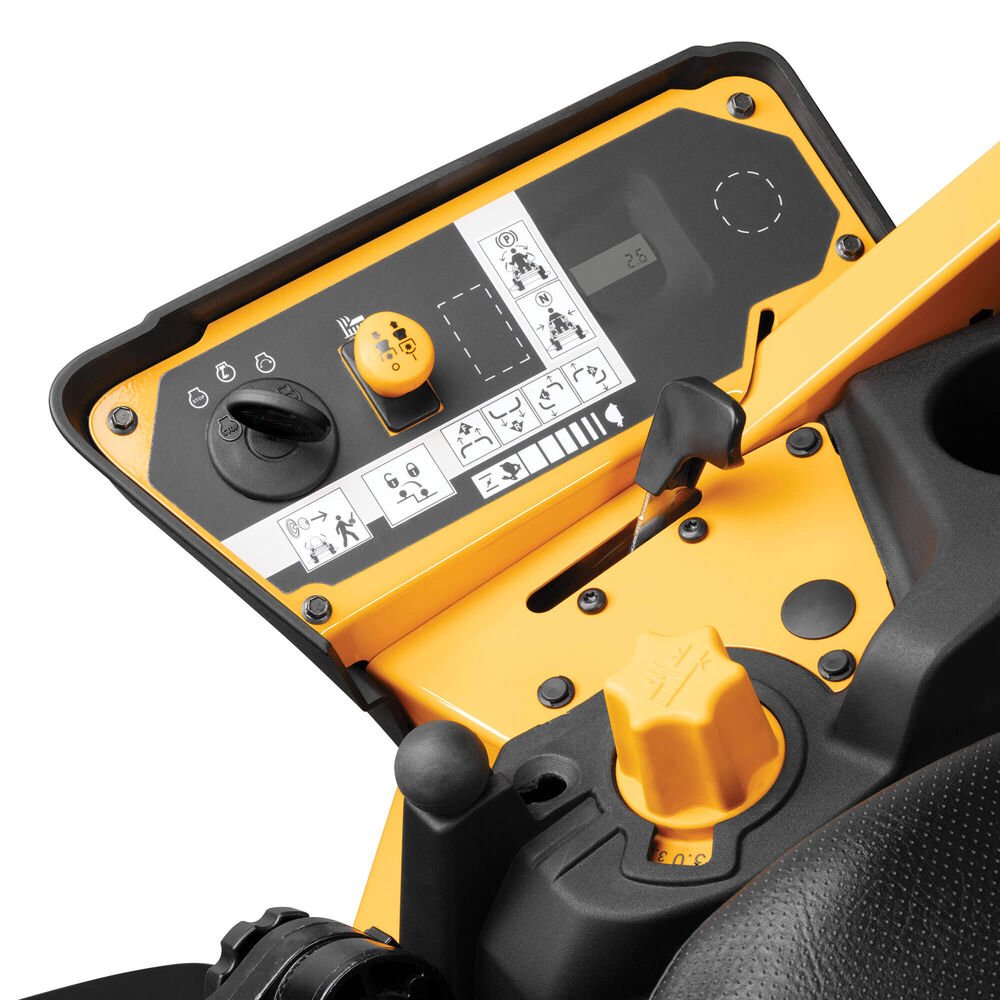

Controls
-
Cruise Control: No
-
Brakes: Disc
-
Steering Control: Lap Bars
Comfort
-

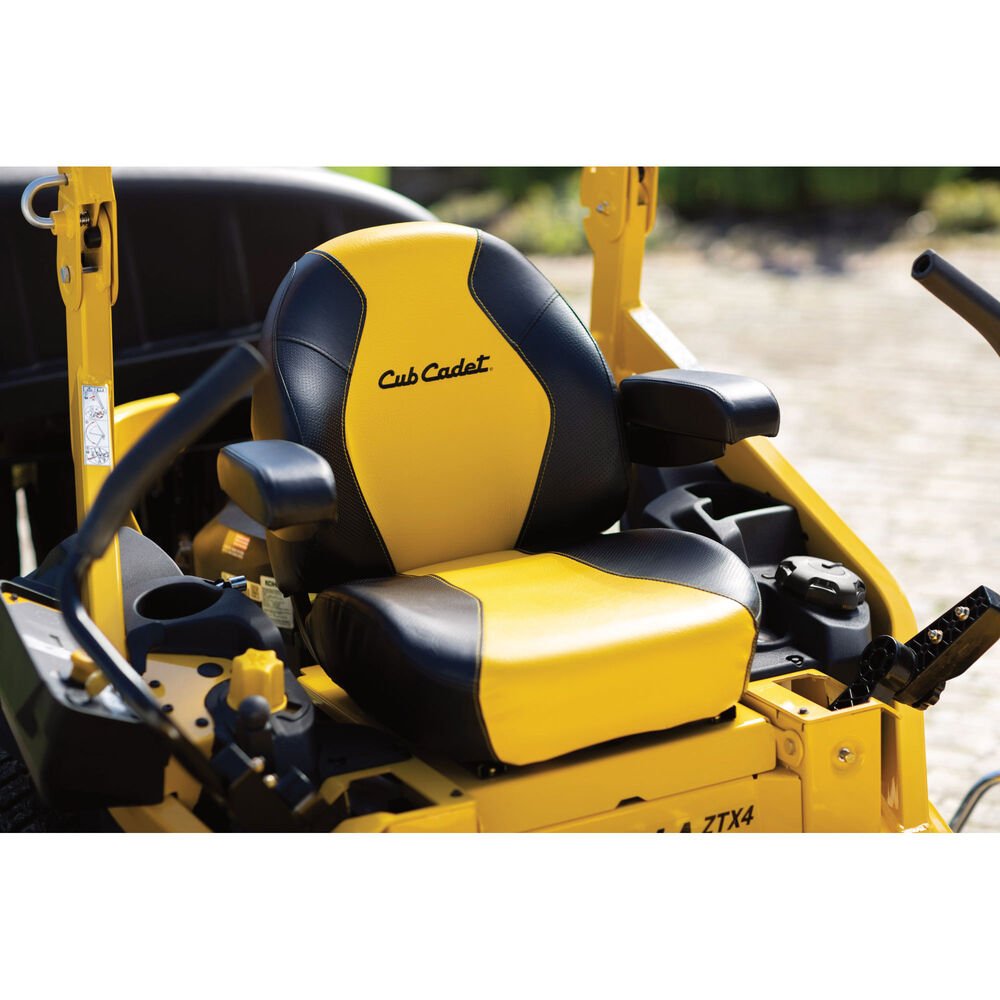

Seat Type: 20" high back
-
Armrests: Yes
-
Seat Adjustment: Lever
-
Front Caster Suspension: No
Wheels
-
Rear Tires: 22"x12"-12"
-
Front Tires: 13"x6.5"-6"
-
Tire Tread: Turf Master/Multi Trac
Specifications
-
Series: Ultima Series™ ZTX
Additional Specifications
-
Hour Meter: Yes
-
Mulch Kit: Available separately
-
Headlight(s): Dual LED
-
Cup Holder: Yes
-
Operator Presence System: Yes
-
Parking Brake: Lap Bar Integrated
-
Model Number: 47TSAAA8A10
Warranty
-
Residential Warranty: 4-year 800 hours
-
Frame Warranty: Limited lifetime
-
Deck Shell Warranty: Lifetime limited
-
Commercial Warranty: 4-year 800 hours
Disclaimers
-
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
-
Horsepower: As rated by Kohler®, all power levels are stated in gross horsepower at 3600 RPM per SAE J1940 as rated by engine manufacturer.
