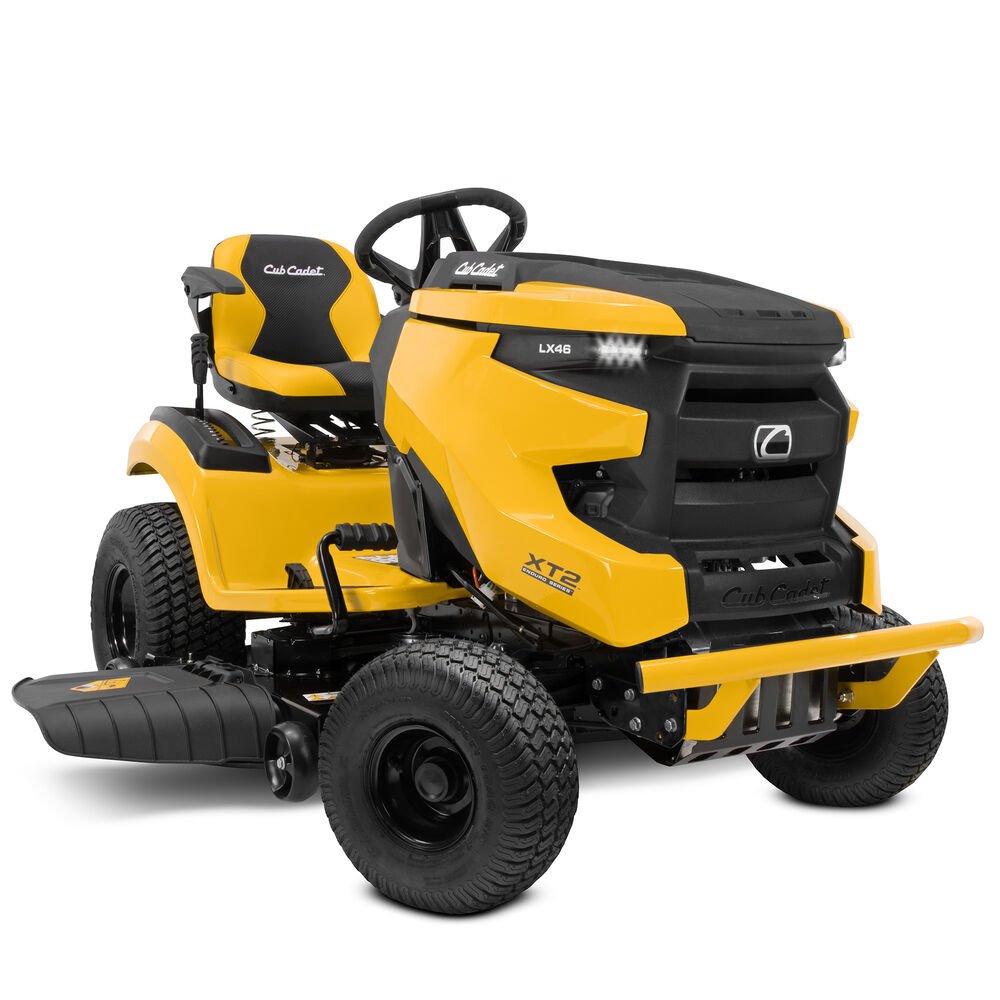

XT2 LX46 Lawn Tractor

Cub CadetSKU: CUB-13AQA1TNA10

Model: 13AQA1TNA10

Variant

Price:

$3,399.00

Stock:

Call to Order

Quantity:

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category:

Primary Use:

Size:

Power Type:

Product Highlights

A strong 23 HP Kohler® engine delivers reliable power to tackle your yard
46-in. heavy-duty fabricated AeroForce™ deck cutting system delivers a best-in-class cut with fewer clumps, finer clippings and increased evenness
Tuff Torq Hydrostatic transmission, no shifting, just push the pedal and go

Product Specifications

Engine

Engine Brand: Kohler®
Engine Model: 7000 Series HD
Engine Model Number: KT730
Engine Displacement: 725cc
Engine Output: 23HP
Starter Type: Electric
Fuel Tank Capacity: 3.0 gal. US (11.36 L)
Cylinders: Twin
Engine Start: Ignition Key
Engine Oil Capacity: 2.0 qts. US (1.89 L)
Lubrication: Fully pressurized
Charging System: 12 amp regulated
Fuel Gauge: No
Governor: Mechanical
Choke: Choke-a-matic
Air Filter: Single element
Oil Filter: Yes
Fuel Delivery: Carburetor

Battery

Battery: 210 CCA
Battery Type: AGM (Absorbent Glass Mat)
Battery Voltage: 12V

Drive System

Transmission: Tuff Torq® K46
Forward Speed: 5.5 MPH / 8.6 KMH
Reverse Speed: 3 MPH / 4.8 KMH
Rear Axle: 1"
Drive System: Hydrostatic
Transmission Control: Foot Pedal
Transmission Housing: Cast aluminum
Rear Differential Lock: No

Cutting Deck

Deck Cutting Width: 46 in
Deck Wash: Yes
Deck Material: 11-gauge steel
Deck Engagement (PTO): Electric
Deck Construction: Fabricated
Blade(s): 2
Deck Lift: Manual
Cutting Height Range: 1" - 4"
Anti-Scalping: 4 gauge wheels
Deck Positions: 12

Warranty

Warranty: 3-year unlimited hours
Frame Warranty: 5-year limited
Front Axle Warranty: 5-year unlimited hours
Deck Shell Warranty: Lifetime limited
Commercial Warranty: No

Chassis

Frame: Robotically welded
Turning Radius: 16"
Bumper: Steel Tube
Rear Tow Hitch: Yes
Corrosion Protection: Yes
Front Pivot Bar: Cast iron

Controls

Cruise Control: Yes
Brakes: Disc

Comfort

Seat Type: 15" High-back
Armrests: Yes
Seat Adjustment: Lever
Floor Mats: Rubber

Wheels

Bearing Type: Ball Bearing
Rear Tires: 20" x 8" -8”
Front Tires: 15"x6"-6"
Tire Tread: Multi Trac

Additional Specifications

Mulch Kit: Available separately
Headlight(s): Dual LED
Cup Holder: Yes
Operator Presence System: Yes
Model Number: 13AQA1TNA10

Specifications

Series: XT2® Enduro Series™

Specifications Disclaimer: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
