Category: Water Pump
Primary Use: Residential
Size:
Power Type: Gas
Description
Product Highlights

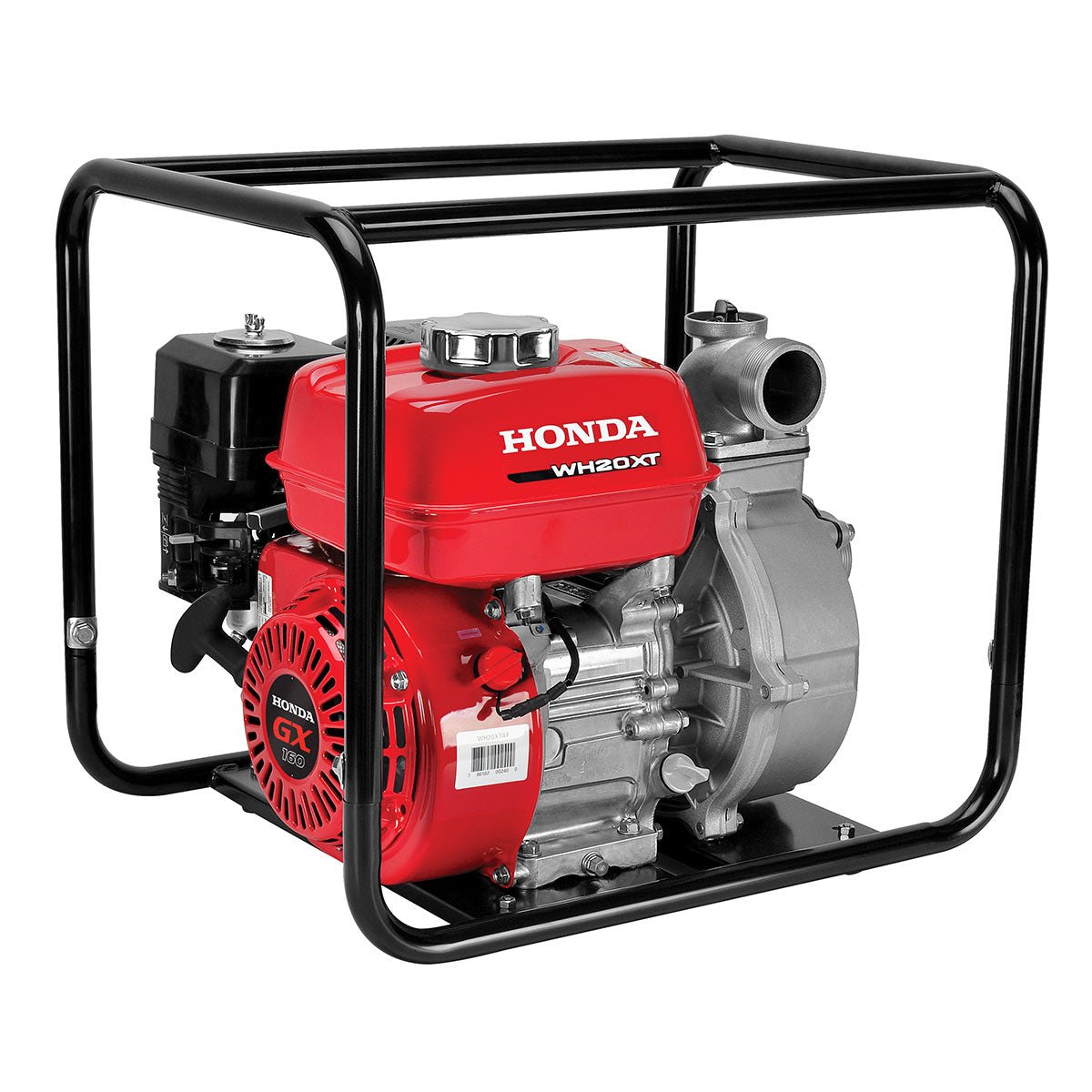

2" high pressure water pump
- 119 gal./min capacity
- 64 psi max.
- Cast iron volute and impeller
Features
High pressure - ideal for sprinklers or nozzles
With a maximum pressure of 64 psi, the WH20 is designed for a variety of applications requiring high pressure.
Easy starting Honda OHV commercial engine
The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.
119 gal./min capacity
Cast iron volute and impeller
The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.
Heavy duty full frame protection
Protects the pump, while offering a convenient tie down location for transport.
Lightweight aluminum case
Specifications
Engine: GX160
Displacement: 163cc
Bore and stroke: 2.7" x 1.8"
Compression Ratio: 9.0:1
Oil Alert: N/A
Pump Type: High Pressure, Centrifugal, Self-priming
Volute: Rigid Mounted Cast Iron
Impeller: Cast Iron
Mechanical Seal (Pump case / impeller): Carbon/Ceramic
Priming time: 80 sec. at 16.4 ft.
Drive system: Direct
Discharge capacity: 119 gals./min.
Suction port diameter: 2" NPT
Discharge port diameter: 2" NPT
Total head lift: 148 ft.
Suction head lift: 26 ft.
Maximum pressure: 64 psi
Solids handling: N/A
Dimensions (LxWxH): 20.5" x 15.7" x 18.1"
Dry weight: 60 lb.
Fuel Capacity: 0.82 gal
Run Time @ Max Discharge: 1.5 hr
Strainer Part #78325-YB7-702
Residential Warranty: 24 months
Commercial Warranty: 12 months
