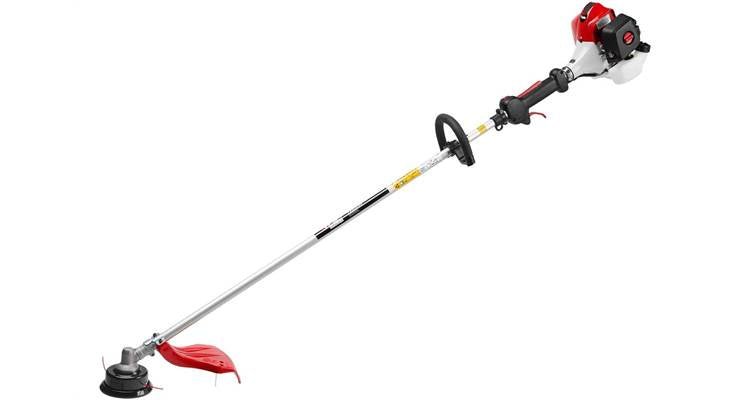

This RedMax trimmer is a powerful performer for homeowners as well as commercial contractors. The TRZ230S features a 22.5 cc, 0.94 horsepower engine and its light weight makes the trimmer extra portable for landscaping use. A Strato-Charged engine ensures up to 20% better fuel economy than a traditional two-stroke engine while increasing torque and improving emissions. A steel drive shaft with 7-point splined engagement ensures durability and quick acceleration.
Specifications
Dimensions
Weight (excl. cutting equipment): 10.14 lbs
Emissions
Exhaust emissions (CO average): 495.18 g/kWh
Engine
Cylinder displacement: 22.5 cm³
Power output: 0.94 hp
Fuel tank volume: 21.64 fl oz
Fuel consumption: 450 g/kWh
Idling speed: 3000 rpm
Spark plug: NGK BPMR8Y
Electrode gap: 0.03 in
Torque, max. at rpm: 6500 rpm
Torque, max.: 1 Nm
Clutch engagement speed (±120): 4000 rpm
Maximum rpm output shaft: 8208 rpm
Gear
Gear ratio: 1.462
Drive gear angle: 60 °
