Product Highlights
CZT72TX
The Redmax CZTX platform was designed specifically for the commercial landscaper. With a focus on commercial engines, heavy duty Integrated drive systems, cast iron components, heavy gauge steel decks and robust frames, RedMax is designed to stand the test of time. Excellent full suspension seats with EVC technology will keep the operator comfortable all day on the roughest terrain. Superior traction and ease of operation make RedMax an efficiency expert on the job, providing dependability under the toughest mowing circumstances. Available with a full line of accessories for your specific mowing requirements.
Rubber Discharge Shield
The rubber shield is flexible to avoid damage due to accidental impacts
Adjustable steering levers
Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.
Premium Suspension seat
Deep cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. Additional full suspension system gives a smoother ride on rough terrain during long working hours.
Adjustable Heavy Duty Clutch
The commercial duty electric clutch is adjustable for wear to prolong the useful life.

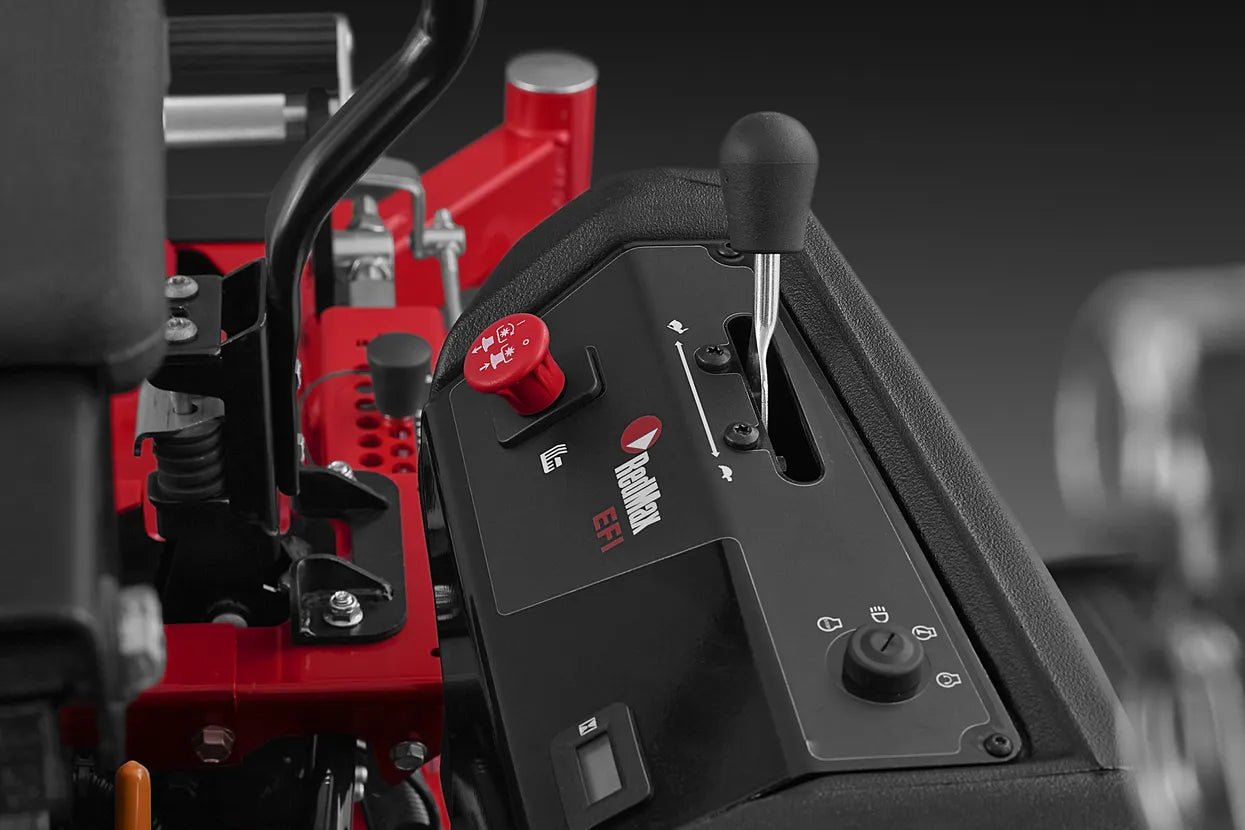

Ergonomic control panel
The ergonomic control panel places everything conveniently at your fingertips.
Cast iron spindles
10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.
Cutting deck
The combination of 6" deck depth, high-performance blades and optimized deck baffles allows for exceptional cut quality and clipping dispersal. This gives you faster cutting speeds for increased productivity while minimizing missed grass or clumps.
Large Fuel Capacity
Dual fuel tanks with 10 gallon total capacity allows for all day running. Oversized fuel caps reduce spillage.
Commercial Duty Drive System
The Hydro-Gear ZT-5400 series transmission offers smooth operation and long life durability.

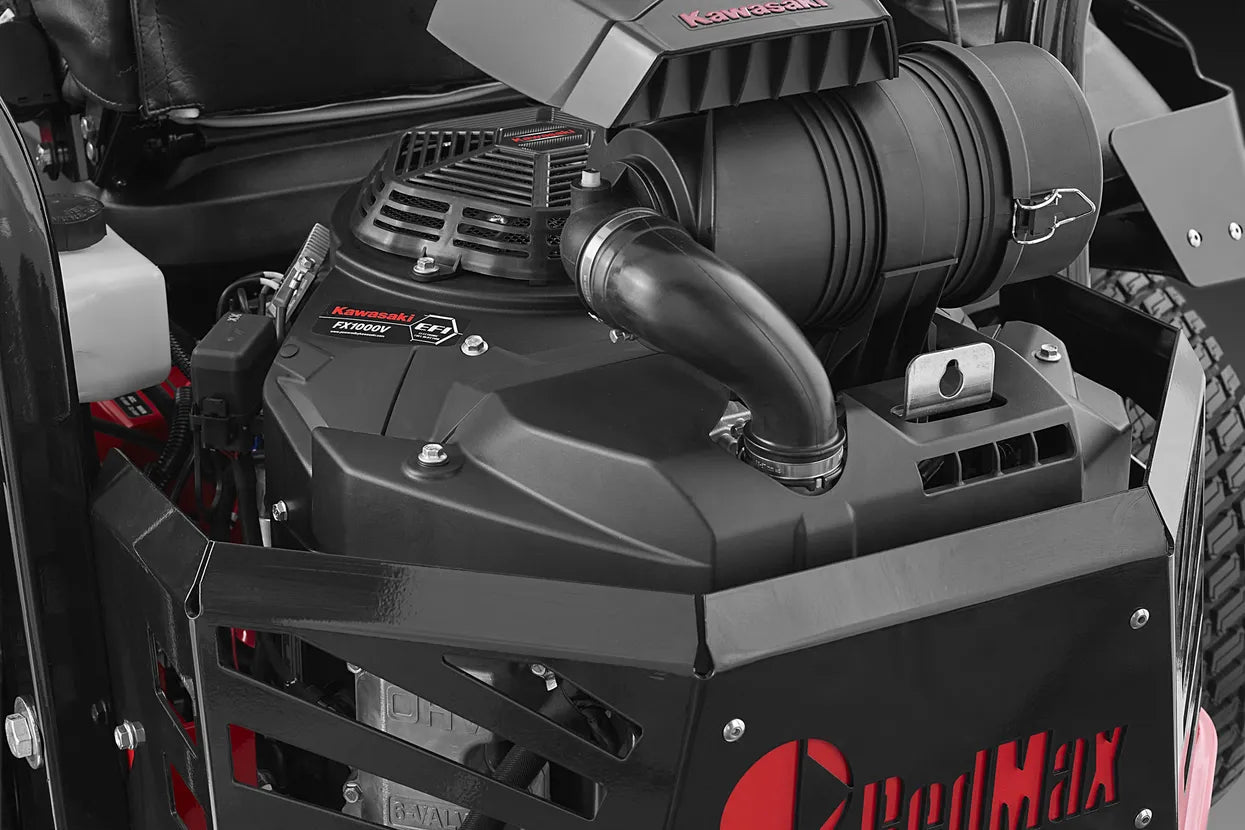

Kawasaki Fuel Injected Engine
The Kawasaki FX1000 EFI engine combines big displacement with an integrated electronic throttle control, to give stable torque delivery even in heavy cutting. The result is higher productivity without sacrificing cut quality.
Easy Cutting Deck Access

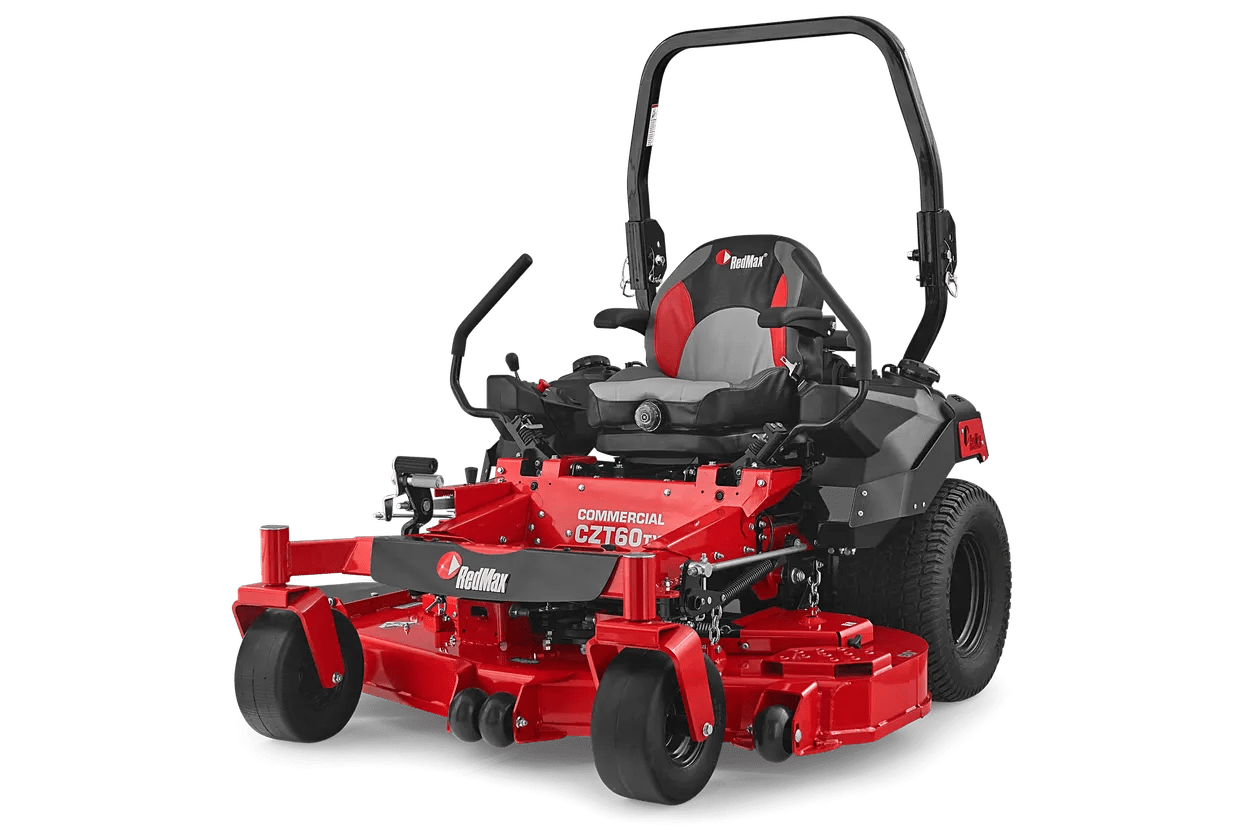

Removable foot pan for easy access to deck belts, pulleys, spindle service and clean-up. (CZT60X shown)

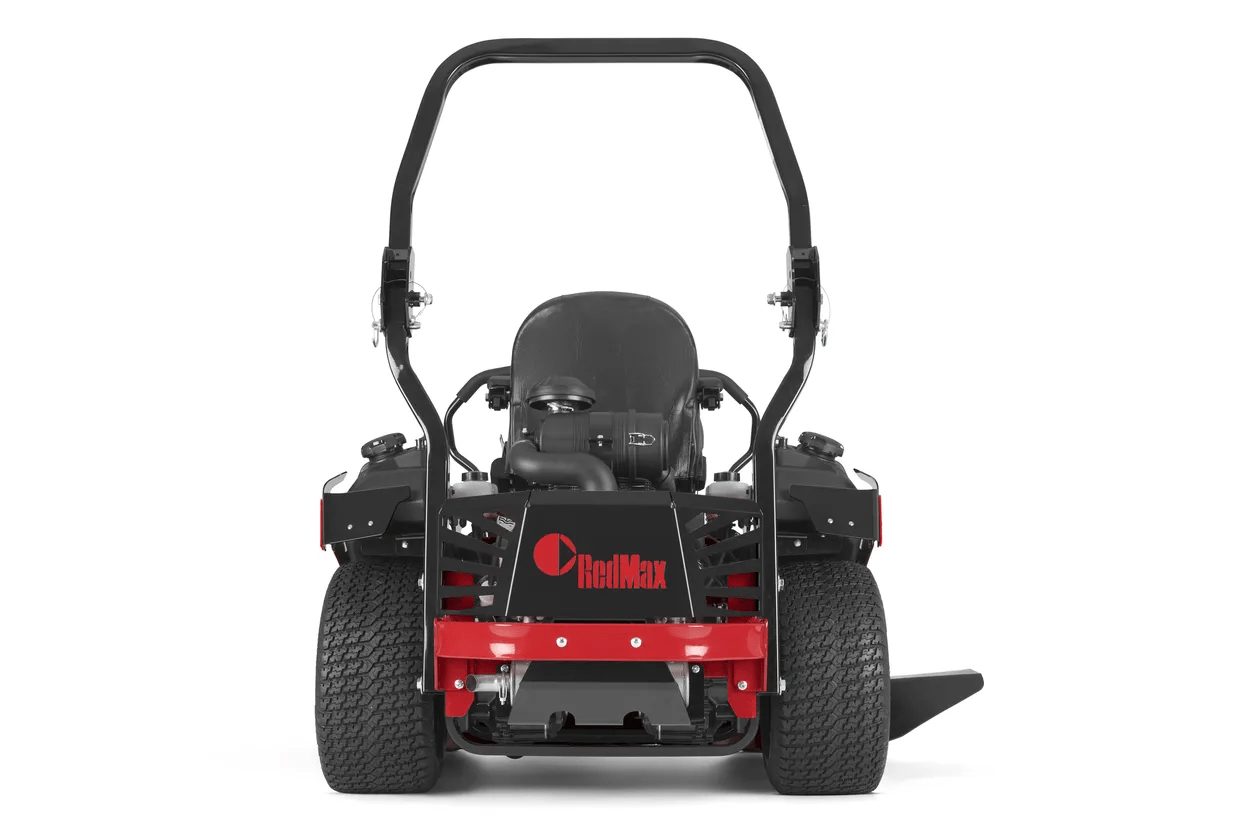

Roll Over Protection System (ROPS)
The roll over protection system helps protect the user and can be lowered in areas with low-hanging branches.
Specifications
|
| Engine |
CZT72TX ZERO TURN
Article Number: 970 73 16‑01
|
| Cylinder displacement |
61 cu.inch |
| Cylinders |
2 |
| Engine cooling |
Air |
| Engine lubrication type |
Full pressure with oil filter |
| Engine name |
FX Series |
| Fuel tank location |
Side (Dual) |
| Fuel tank volume (with reserve) |
10 gal (US) |
| Motor/engine manufacturer |
Kawasaki |
| Power/fuel type |
Gasoline |
| Equipment |
|
| Cup holder |
Yes |
| Seat back height |
High |
| Seat type |
Premium, suspension |
| Cutting deck |
|
| Anti-scalp wheels |
6 |
| Blade engagement |
Electromagnetic clutch |
| Blades |
3 pcs |
| Cutting deck material |
Steel |
| Cutting deck type |
7-gauge fabricated |
| Cutting methods |
Mulching/Side discharge |
| Cutting width |
72 in |
| Deck thickness |
7 gauge |
| Capacity |
|
| Speed forward max |
12 mph |
| Speed forward min |
12 mph |
| Drive system |
|
| Transmission manufacturer |
Hydro-Gear |
| Transmission model |
ZT 5400 |
| Dimensions |
|
| Base machine, height |
46 in |
| Base machine, length |
81 in |
| Base machine, width |
53.5 in |
| Weight |
1,392 lbs |
