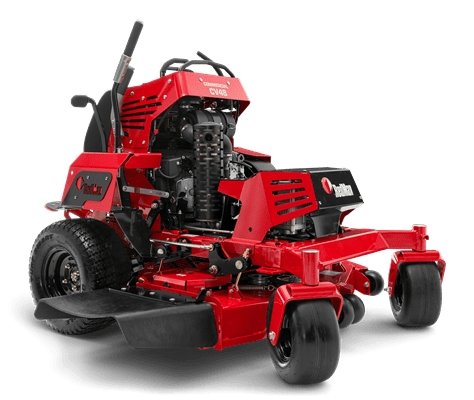

The Redmax CV series stand-on mower represents extreme efficiency in commercial mowing. With a compact footprint, landscapers can arrange more landscaping products on their truck or trailer. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver long lasting operation in any commercial application.
Product Features
Optimized balance and traction
Positioning the operator between the wheels instead of behind the wheels places weight in a more appropriate location for enhanced traction. It reduces the operator effort in staying perfectly balanced, especially during zero turn maneuvers.
Front mounted hydraulic pumps
Mounting the hydraulic pumps in front offers an industry first perfectly balanced stand-on for improved hill holding and traction.
Kawasaki FR730V
Kawasaki V-Twin engine
Fully pressure-lubricated, two-cylinder Kawasaki engine with oil pump and oil filter. Powerful and quiet.
Operator console
With all of the controls at the operator's fingertips and well protected by the operator assist bars, ease of use is premium.
Easy disengagement of hydraulic transmission
CV Stand-on mowers features the fastest method of disengaging the hydraulic transmissions available today. One lever pull is all it takes to make both transmissions go to bypass mode.
High leverage deck lift
With an extended cast handle and spring assist, the model has the most ergonomic deck lift in stand-on mowing. Easy to raise and easy to lower reduces strain throughout the workday.
Tool-less removal of operators cushion
For minor service and cleaning, the removal of operators cushion is fast and efficient, keeping up-time at a maximum.
Large Fuel Capacity
Dual fuel tanks with 10 gallon total capacity allows for all day running. Oversized fuel caps reduce spillage.
Product Specifications
Capacity
Speed forward max: 11 mph
Cutting Deck
Cutting width: 54 in
Cutting deck type: 7-gauge fabricated
Cutting methods: Collect/Mulch/Side discharge
Cutting deck material" Steel
Deck thickness: 7 gauge
Blade engagement: Electric clutch
Blades: 3 pcs
Anti-scalp wheels: 3
Dimensions
Base machine, length: 57 in
Base machine, height: 48 in
Base machine, width: 47 in
Weight: 1176 lbs
Drive System
Transmission manufacturer: Parker
Transmission model: HP1/DL
Engine
Motor/engine manufacturer: Kawasaki
Engine name: FX Series
Cylinder displacement: 52 cu.inch
Cylinders: 2
Power/fuel type: Gasoline
Engine lubrication type: Full pressure with oil filter
Fuel tank volume (with reserve): 7 gal (US)
Fuel tank location: Side (Single)
