RedMax CV48 Stand-On Mower w/ Blower & Trimmer Combo Kit

RedmaxSKU: RED-970465201

Price:
Sale price$9,605.00
Stock:
Only 1 unit left

Available for store pickup and local delivery only

On Sale Through 7/6

Book now
 More payment options

Pickup currently unavailable at Affton Lawn Equipment

Category:

Primary Use: Commercial

Size: 48"

Power Type: Gas

Description

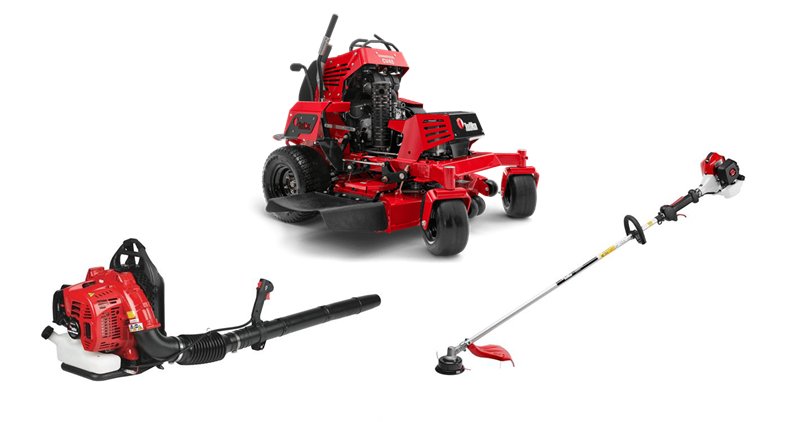

Kit includes EBZ7500 Blower & BCZ260TS Trimmer

The Redmax CV series stand-on mower represents extreme efficiency in commercial mowing. With a compact footprint, landscapers can arrange more landscaping products on their truck or trailer. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver long lasting operation in any commercial application.

Product Features

Optimized balance and traction

Positioning the operator between the wheels instead of behind the wheels places weight in a more appropriate location for enhanced traction. It reduces the operator effort in staying perfectly balanced, especially during zero turn maneuvers.

Front mounted hydraulic pumps

Mounting the hydraulic pumps in front offers an industry first perfectly balanced stand-on for improved hill holding and traction.

Kawasaki FR730V

Kawasaki V-Twin engine
Fully pressure-lubricated, two-cylinder Kawasaki engine with oil pump and oil filter. Powerful and quiet.

Operator console

With all of the controls at the operator's fingertips and well protected by the operator assist bars, ease of use is premium.

Easy disengagement of hydraulic transmission

CV Stand-on mowers features the fastest method of disengaging the hydraulic transmissions available today. One lever pull is all it takes to make both transmissions go to bypass mode.

High leverage deck lift

With an extended cast handle and spring assist, the model has the most ergonomic deck lift in stand-on mowing. Easy to raise and easy to lower reduces strain throughout the workday.

Tool-less removal of operators cushion

For minor service and cleaning, the removal of operators cushion is fast and efficient, keeping up-time at a maximum.

Large Fuel Capacity

Dual fuel tanks with 10 gallon total capacity allows for all day running. Oversized fuel caps reduce spillage.

Product Specifications

Capacity

Speed forward max: 11 mph

Cutting Deck

Cutting width: 48 in
Cutting deck type: 7-gauge fabricated
Cutting methods: Collect/Mulch/Side discharge
Cutting deck material" Steel
Deck thickness: 7 gauge
Blade engagement: Electric clutch
Blades: 3 pcs
Anti-scalp wheels: 3

Dimensions

Base machine, length: 57 in
Base machine, height: 48 in
Base machine, width: 47 in
Weight: 1140 lbs

Drive System

Transmission manufacturer: Parker
Transmission model: HP1/DL

Engine

Motor/engine manufacturer: Kawasaki
Engine name: FX Series
Cylinder displacement: 52 cu.inch
Cylinders: 2
Power/fuel type: Gasoline
Engine lubrication type: Full pressure with oil filter
Fuel tank volume (with reserve): 7 gal (US)
Fuel tank location: Side (Single)
