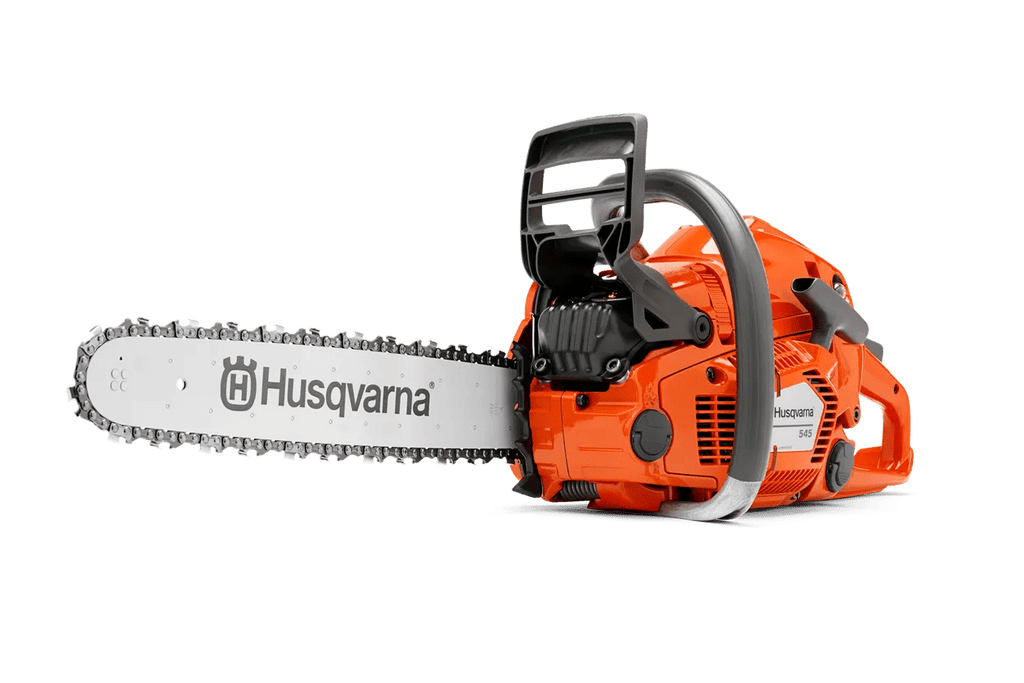

HUSQVARNA 545

Name: HUSQVARNA 545
Brand: Husqvarna
SKU: HUS-966648608
Price: 509.95 USD
Availability: OutOfStock

HusqvarnaSKU: HUS-966648608

Price:

$509.95

Stock:

Call to Order

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category: Chainsaw

Primary Use: Commercial

Size: 18"

Power Type: Gas

Product Highlights

545

Husqvarna 545 is developed for demanding work by contractors and land owners. The saw has a ground breaking design and is loaded with raw power for efficient operation. Our unique X-Torq® engine technology provide more power where you need it, up to 20% less fuel consumption and 75% less exhaust emission.

Specifications

Engine	18" - .325 - .058 Auto Tune SKU: 966 64 86‑08
Cylinder displacement	50.1 cm³
Output shaft power¹	3.35 hp
Torque, max.	2.69 Nm
Torque, max. at rpm	6,600 rpm
Clutch engagement speed (±120)	4,200 rpm
Electrode gap	0.02 in
Idling speed	2,800 rpm
Ignition module air gap	0.01 in
Maximum power speed	9,600 rpm
Oil pump capacity, max	12 ml/min
Oil pump capacity, min	5 ml/min
Oil pump type	Automatic
Spark Plug	NGK CMR6H
Equipment
Recommended bar length, min	13 in
Pitch	.325"
Recommended bar length, max	20 in
Bar length	45 cm
Bar length (inch)	18 in
Sprocket type	Rim 7
Dimensions
Weight (excl. cutting equipment)	10.8 lbs
Sound and noise
Sound pressure level at operators ear	106 dB(A)
Sound power level, guaranteed (LWA)	116 dB(A)
Sound power level, measured	114 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	3.7 m/s²
Equivalent vibration level (ahv, eq) front handle	3.8 m/s²
Lubricant
Oil tank volume	0.57 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)²	824 g/kWh
