Product Highlights

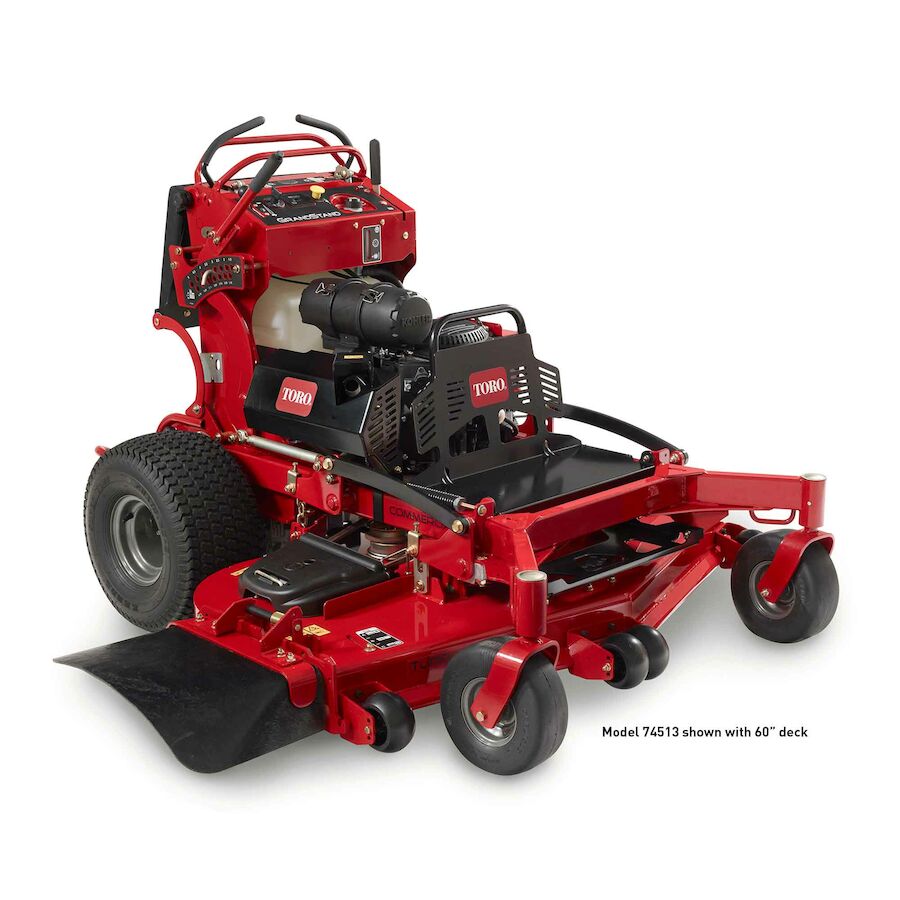

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 35 hp Kawasaki FX 1000 999cc engine.
- Foldable operator platform instantly converts the machine to a walk-behind.
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
- Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
- Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
- No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
- Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
- The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
- 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
- A wide stance and optimal balance enhance hillside stability and control.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Product Specifications
| Adjustable Discharge Baffle |
Standard, Tools-Free |
| Air Filter |
Heavy-Duty Canister Air Cleaner |
| Anti Scalp Wheels |
Standard |
| Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
| Blades |
0.204 in. (0.5 cm) heat-treated steel |
| Box Dimensions |
90 in. x 70 in. x 52 in. / 228.6 cm x 117.8 cm x 132.1 cm |
| CARB Compliant |
Not CARB Compliant |
| Carrier Frame |
3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge) |
| Caster Tires |
11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic |
| Clutch |
Electromagnetic |
| Comfort Platform |
Foldable Operator Platform with Suspension |
| Controls |
Twin lever |
| Deck Design |
7-gauge 60" (152.4 cm) TURBO FORCE® w/bull-nose bumper |
| Deck Material |
7 Gauge Steel |
| Deck Size |
60 in / 152 cm |
| Discharge Chute |
Rubber |
| Drive System |
Unitized Pumps 10cc rev Wheel Motors 10 cir |
| Drive Tires |
20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm) |
| Engine |
35 hp* Kawasaki FX1000 999 cc |
| Engine Brand |
Kawasaki |
| Engine Displacement (cc) |
999 cc |
| Engine Horsepower |
35 hp |
| Forward Ground/Transport Speed |
Up to 10.0 mph / 16.0 kph |
| Front Bumper |
Reinforced Bull-Nose |
| Fuel Capacity |
10.5 gal. / 39.7 L / 42 Qt. |
| Fuel Type |
Gasoline |
| Height of Cut |
1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hour Meter |
Standard |
| Hydraulic Fluid |
Premium synthetic |
| Product Type |
Stand-On Mowers |
| Product Use |
Commercial |
| Spindle Bearings |
Maintenance-free |
| Spindle Housing |
9 in / 22.9 cm Diameter Cast Aluminum |
| Start Type |
Electric |
| Steering Controls |
Twin Lever |
| Weight |
1,000 lbs / 454 kg |
Disclaimer
*35 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
