Product Highlights

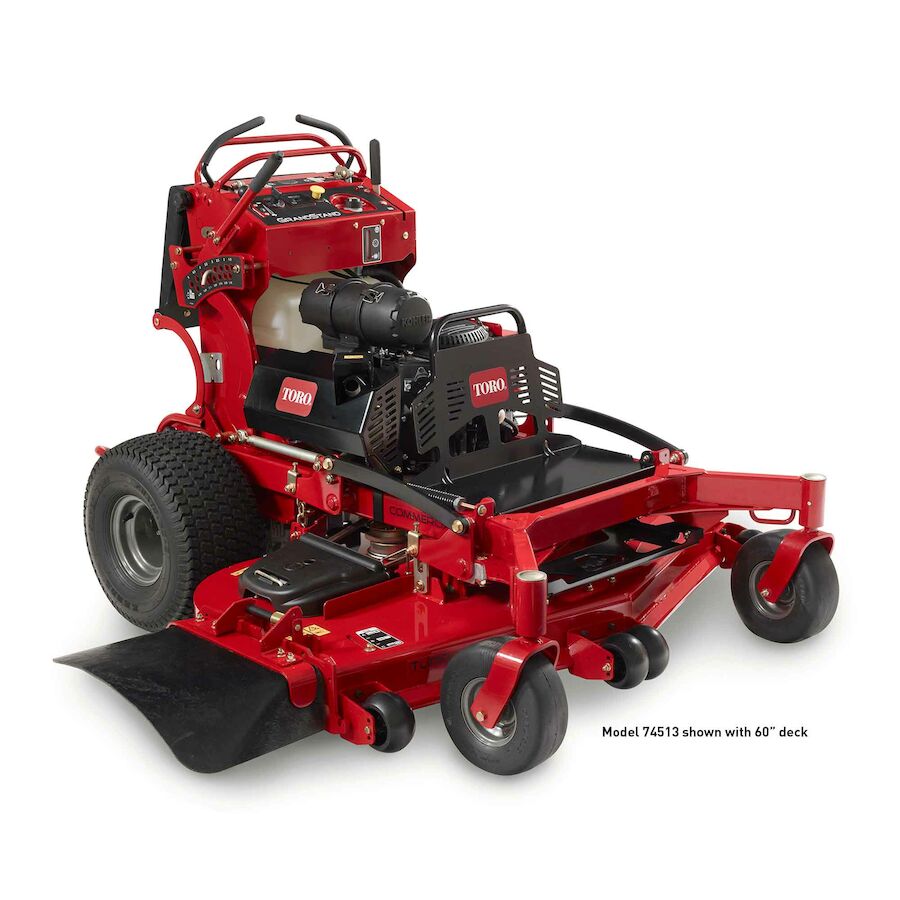

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 28 hp Briggs and Stratton engine.
- Foldable operator platform instantly converts the machine to a walk-behind.
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
- Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
- Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
- No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
- Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
- The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
- 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
- A wide stance and optimal balance enhance hillside stability and control.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Product Specifications
| Adjustable Discharge Baffle |
Standard, Tools-Free |
| Air Filter |
Heavy-Duty Canister Air Cleaner |
| Anti Scalp Wheels |
Standard |
| Blade Tip Speed |
18,500 ft/min / 5,638 m/min |
| Blades |
0.204 in. (0.5 cm) heat-treated steel |
| Box Dimensions |
91 in. x 70.25 in. x 52 in. / 231.1 cm x 178.4 cm x 132.1 cm |
| CARB Compliant |
Not CARB Compliant |
| Carrier Frame |
3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge) |
| Caster Tires |
11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic |
| Clutch |
Electromagnetic |
| Comfort Platform |
Foldable Operator Platform with Suspension |
| Controls |
Twin lever |
| Deck Design |
80-grade 7-gauge 60" (152.4 cm) TURBO FORCE® w/bull-nose bumper |
| Deck Material |
7 Gauge Steel |
| Deck Size |
60 in / 152 cm |
| Discharge Chute |
Rubber |
| Drive System |
Unitized Pumps 10cc rev Wheel Motors 10 cir |
| Drive Tires |
20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm) |
| Engine |
28 hp Briggs and Stratton 883 cc |
| Engine Brand |
Briggs and Stratton |
| Engine Displacement (cc) |
883 cc |
| Engine Horsepower |
28.0 hp |
| Forward Ground/Transport Speed |
Up to 10.0 mph / 16.0 kph |
| Front Bumper |
Reinforced Bull-Nose |
| Fuel Capacity |
10.5 gal. / 39.7 L / 42 Qt. |
| Fuel Type |
Gasoline |
| Height of Cut |
1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hour Meter |
Standard |
| Hydraulic Fluid |
Premium synthetic |
| Product Type |
Stand-On Mowers |
| Product Use |
Commercial |
| Spindle Bearings |
Maintenance-free |
| Spindle Housing |
9 in / 22.9 cm Diameter Cast Aluminum |
| Start Type |
Electric |
| Steering Controls |
Twin Lever |
| Weight |
963 lbs / 436.8 kg |
Disclaimer
*The gross horsepower on this gasoline engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J1995. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers may be significantly lower.
