Category: Rear Handle Chainsaws
Primary Use: Commercial
Size:
Power Type: Gas
Description
Product Highlights

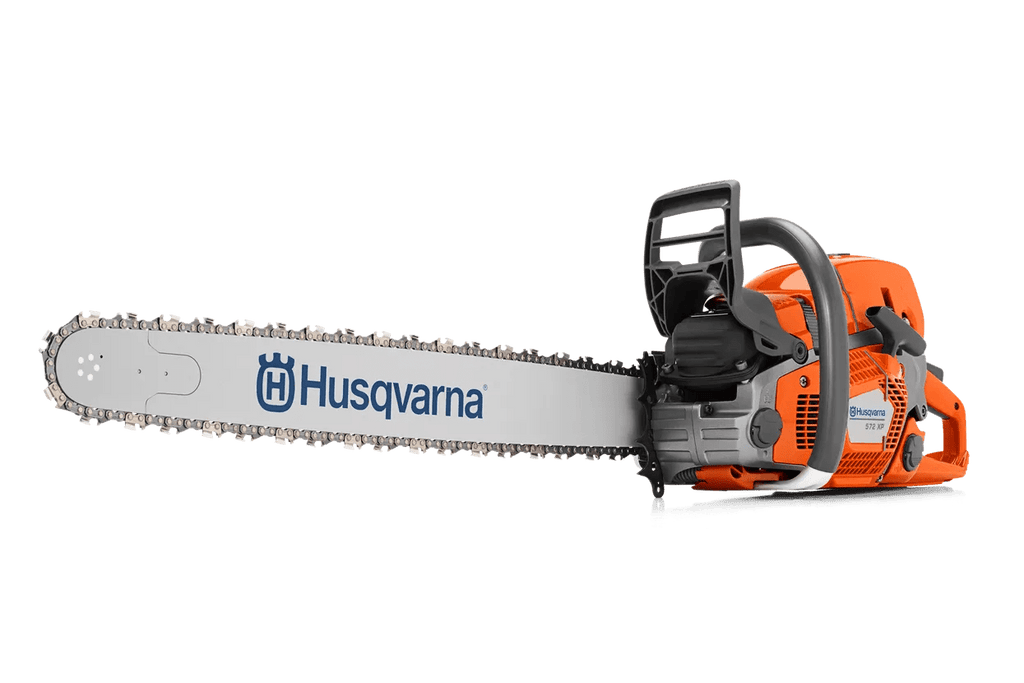

Tested in the world’s most rugged environments, the Husqvarna 572 XP® is ready for demanding work by forestry and tree care professionals. At just 14.5 lbs, the 572 XP® has a better power-to-weight ratio and 12% higher cutting capacity than previous Husqvarna models in the same class. Excellent cooling and heavy-duty filtration maximize reliability, while a smart design accommodates longer guide bars. Thanks to AutoTune™, Air Injection™ and low vibration technology, the 572 XP® empowers you to work all day. Get ready to cut faster, longer and better than ever with the 572 XP®.
Features
- Higher cutting capacity
- Excellent cooling capacity for a longer engine life
- Equipped with state-of-the-art filtration system
- 10 times quicker air/fuel mix adjustment
- Low vibrations
- Flip-Up Fuel Cap
- Optimal chip ejection avoids clogging
- Soft cut-out system
- Better manoeuvrability gives full control
- Felling sight to last a lifetime
- Rubber handle inlay for safer grip
- Fuel Indicator
- Air Injection filters 98% of incoming dust
- AutoTune
- Magnesium crankcase
- Smart Start® Technology
- Powerful and Efficient X-TORQ® Engine
Specifications
| Engine |
28" RSN 3/8" 1,3 mm C83
SKU: 966 73 31‑11
|
20" RSN 3/8" 1,3 mm C83
SKU: 966 73 31‑06
|
20" RSN 3/8" 1,5 mm C85
SKU: 966 73 31‑07
|
24" RSN 3/8" 1,3 mm C83
SKU: 966 73 31‑08
|
24" RSN 3/8" 1,5 mm C85
SKU: 966 73 31‑09
|
28" RSN 3/8" 1,5 mm C85
SKU: 966 73 31‑12
|
28" RSN 3/8" 1,6 mm H83
SKU: 966 73 31‑13
|
32" RSN 3/8" 1,6 mm H83
SKU: 966 73 31‑14
|
24" - US Lightweight RSN - 3/8" - C83
SKU: 966 73 31‑74
|
28" - US Lightweight RSN - 3/8" - C83
SKU: 966 73 31‑78
|
32" - US Lightweight RSN - 3/8 - H83
SKU: 966 73 31‑82
|
| Chain speed at max power | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts | 72.2 fts |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cylinder displacement | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ | 70.6 cm³ |
|
Output shaft power1
|
5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp | 5.8 hp |
| Torque, max. | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm | 4.5 Nm |
| Torque, max. at rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm | 8,200 rpm |
| Clutch engagement speed (±120) | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm | 3,700 rpm |
| Electrode gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in |
| Idling speed | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm |
| Ignition module air gap | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in |
| Maximum power speed | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm | 9,900 rpm |
| Oil pump type | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle | Adjustable flow, no flow at idle |
| Spark Plug | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A | NGK BPMR7A |
| Equipment | |||||||||||
| Recommended bar length, min | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in |
| Pitch | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| Recommended bar length, max | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in |
| Chain type | C83 | C83 | C85 | C83 | C85 | C85 | H83 | H83 | C83 | C83 | H83 |
| Bar length | 70 cm | 50 cm | 50 cm | 60 cm | 60 cm | 70 cm | 70 cm | 81 cm | 60 cm | 70 cm | 80 cm |
| Bar length (inch) | 28 in | 20 in | 20 in | 24 in | 24 in | 28 in | 28 in | 32 in | 24 in | 28 in | 32 in |
| Sprocket type | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 |
| Gauge | .050" | .050" | .058" | .050" | .058" | .058" | .063" | .063" | .058" | .058" | .058" |
| Dimensions | |||||||||||
| Weight (excl. cutting equipment) | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs | 14.5 lbs |
| Sound and noise | |||||||||||
| Sound pressure level at operators ear | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) |
| Sound power level, guaranteed (LWA) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) | 120 dB(A) |
| Sound power level, measured | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) | 118 dB(A) |
| Vibration | |||||||||||
| Equivalent vibration level (ahv, eq) rear handle | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² | 5 m/s² |
| Lubricant | |||||||||||
| Oil tank volume | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint | 0.7 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
| Emission | |||||||||||
|
Exhaust emissions (CO₂ EU V)2
|
841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh | 841 g/kWh |
| 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² | 4.1 m/s² |
/
