Product Highlights

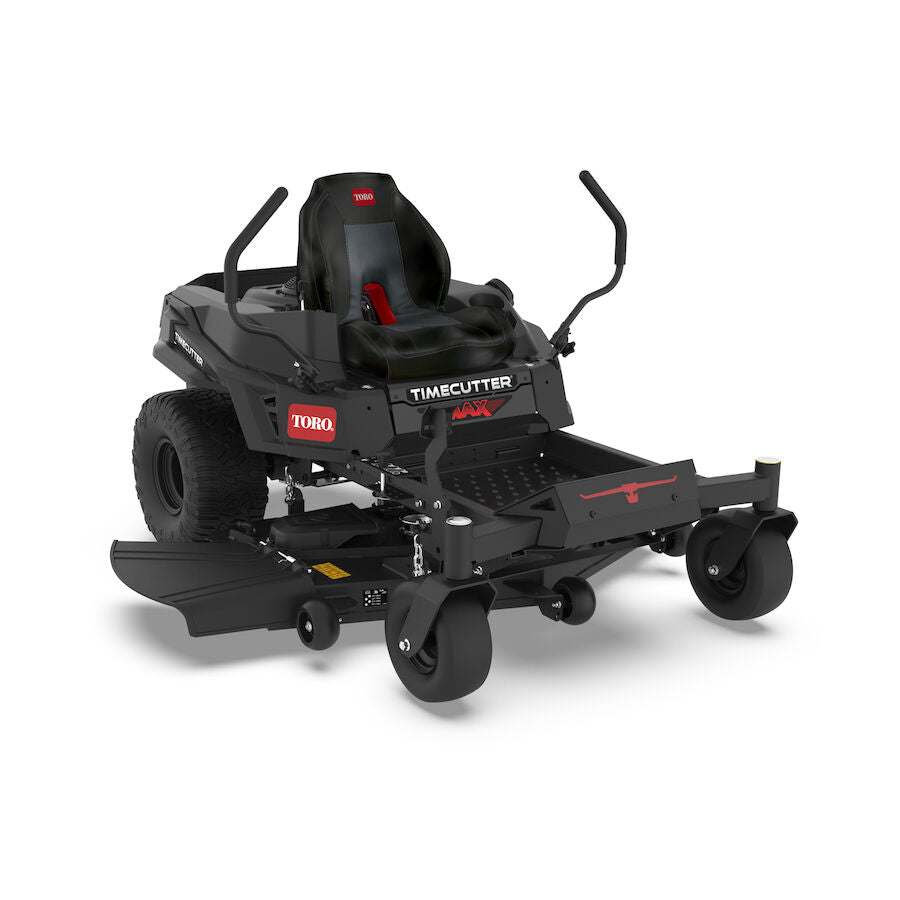

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.
Specifications
| Air Filter |
Standard Kawasaki Air Cleaner |
| Anti Scalp Wheels |
3 Standard |
| Armrests |
Optional |
| Bagger Capacity |
4.9 bushels |
| Blade Tip Speed |
17,700 ft/min / 5,395 m/min |
| Box Dimensions |
82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm |
| CARB Compliant |
Not CARB Compliant |
| Carrier Frame |
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires |
12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic |
| Clutch |
Electromagnetic |
| Comfort Platform |
Standard Suspension |
| Cooling System |
Air Cooled |
| Crankshaft |
1" (25 mm) w/Steel Protector |
| Cup Holder |
Standard |
| Cutter System |
Steel Cutting Blade |
| Deck Design |
10-Gauge steel IrongForged®
|
| Deck Material |
10 Gauge Steel |
| Deck Size |
54 in / 137 cm |
| Discharge Chute |
Side |
| Drive System |
Hydrostatic |
| Drive Tires |
20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm) |
| Drive Type |
Rear-Wheel Drive |
| Engine |
23 hp* Kawasaki® V-Twin 726cc |
| Engine Brand |
Kawasaki |
| Engine Displacement (cc) |
726 cc |
| Engine Horsepower |
23.0 hp |
| Engine Power (kW) |
17.2 kW |
| Foot Operated Height of Cut |
Standard |
| Forward Ground/Transport Speed |
Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed |
Up to 7.0 mph / 11.2 kph |
| Frame |
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity |
5 gal. / 18.9 L / 20 Qt. |
| Fuel Type |
Gasoline |
| Greasable Bearings |
Yes |
| Height of Cut |
1.0 - 5.0 in. / 2.5 - 12.7 cm |
| Hitch Bracket |
Standard |
| Hour Meter |
Optional |
| Hydraulic Drive |
Standard |
| Lighting |
Optional |
| Number of Blades |
3 |
| Product Type |
TimeCutter Max |
| Product Use |
Residential |
| Recommended Oil Type |
10W-30 |
| Roll-Over Protection (ROPS) |
Optional |
| Seat |
19" Gaming Style |
| Spindle Bearings |
Maintenance-free |
| Spindle Housing |
Cast-Aluminum |
| Start Type |
Electric |
| Steering Controls |
Twin Lever |
| Steering Dampeners |
Standard Dampers |
| Terrain Type |
Flat with Obstacles |
| Tires |
12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
| Transmission |
Dual Hydrostatic HG-EZT2200 |
| Washout Port |
Standard |
| Weight |
653 lbs / 296.2 kg |
Disclaimer
*24 HP gross (725 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
