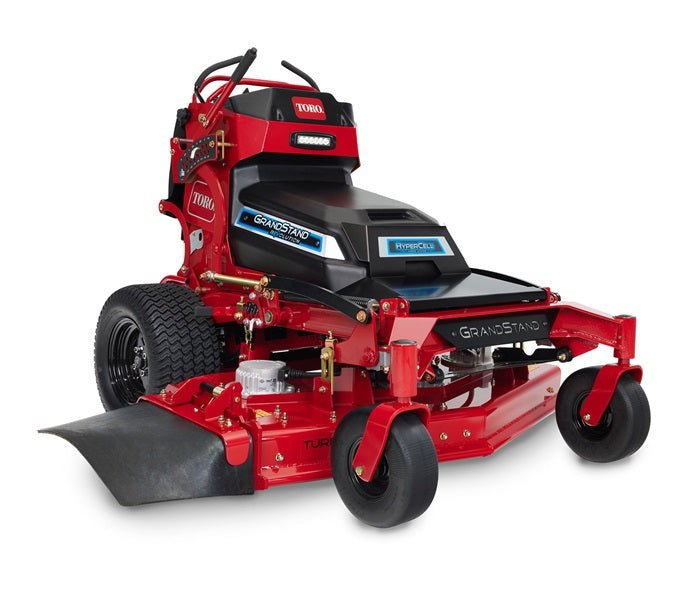

The future of lawn care and your business is here. The new Revolution Series GrandStand is built on the same proven GrandStand chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.
Product Highlights
- Optimize machine feel and response, including speed control, with patent-pending software controls.
- Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
- Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
- Optimize run time and quality of cut with the adjustable deck rake.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Toro Revolution Series products are tested and certified by independent Nationally Recognized Testing Laboratories (NRTLs), which are recognized by OSHA. OSHA’s NRTL program includes trusted testing and certification bodies.
Product Specifications
| Battery Capacity |
18.4 kWh |
| Battery Charge Time (hours) |
14 |
| Battery Power |
Toro HyperCell |
| Battery Run Time (Hours) |
4.5 - 7+ hours |
| Blade Tip Speed |
Adjustable |
| Blades |
0.204 in. (5.18 mm) |
| CARB Compliant |
CARB Compliant |
| Caster Tires |
11 in. x 4 in. - 5 in. (27.9 x 10.2 cm - 12.5 cm) Semi-pneumatic |
| Charge Type |
1.2kW 120V |
| Cutting Width |
52 in / 132 cm |
| Deck Design |
7-gauge 52" (132 cm) TURBO FORCE® |
| Deck Material |
7 Gauge Steel |
| Discharge Chute |
Rubber |
| Drive Tires |
20 in. x 10.5 in.- 12 in. (51 x 26.7 - 30.5 cm) Super Turf |
| Forward Ground/Transport Speed |
Up to 10.0 mph / 16.0 kph |
| Fuel Type |
Battery |
| Height of Cut |
1.5 - 5.5 in. / 3.8 - 14.0 cm |
| Hour Meter |
Standard Hour Meter |
| Lighting |
LED Headlights |
| Motor |
Traction Motor: Commercial High Torque
Mowing Deck: Mid-Mount Commercial High Torque |
| Number of Batteries Included |
8 |
| Product Type |
Stand-On Mowers |
| Product Use |
Commercial |
| Spindle Housing |
9 in / 22.9 cm Diameter Die-Cast Aluminum w/ Blade Retainer |
| Start Type |
Electric |
| Steering Controls |
Twin Lever |
| Transmission |
Planetary Gearset |
-
Steering Controls
Twin lever
-
Transmission
DANA E01S 34:1 Ration
