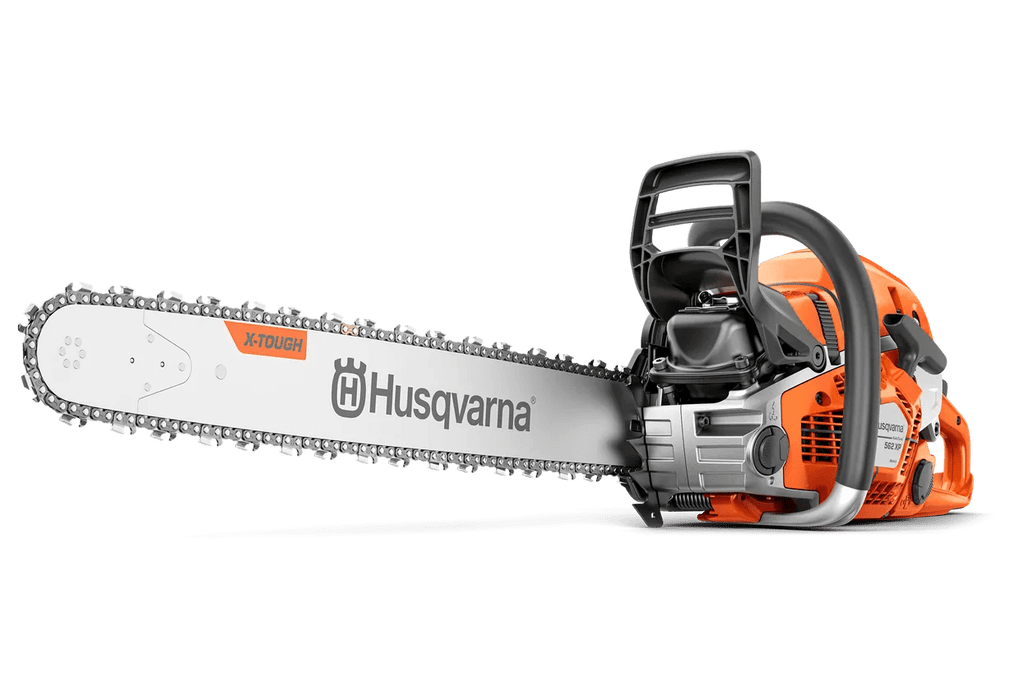

Husqvarna 562 XP® G Mark II

HusqvarnaSKU: HUS-970696638

Bar Length: 18"

Variant

Price:

$929.99

Stock:

Call to Order

Quantity:

Available for store pickup and local delivery only

Pickup currently unavailable at Affton Lawn Equipment

Share this product

Category: Chainsaw

Primary Use: Commercial

Size:

Power Type: Gas

Product Highlights

A Redesigned Legend: A 60cc powerhouse for professional forestry and tree care

Engineered for the demands of professional forestry and tree care, the Husqvarna 562 XP® Mark II offers unparalleled handling in even the most demanding work environments. Featuring a new and improved engine design and AutoTune™ 3.0 technology for simpler starting, this chainsaw offers the power of a large saw in a slim, agile body.

A testament to relentless improvement, the 562 XP® Mark II accommodates guide bars of up to 28 inches, and has been meticulously redesigned to offer more durability, improved cutting capacity, reduced weight and enhanced cooling, resulting in a powerhouse that is easy to handle, tough to beat. Plus, heated handles increase comfort in cold and damp conditions.

Specifications

Engine	20" RSN C83 SKU: 970 69 66‑20	18" RSN C83 SKU: 970 69 66‑38	20" RSN C85 SKU: 970 69 66‑40
Chain speed at max power	70.2 fts	70.2 fts	70.2 fts
Cylinder displacement	59.8 cm³	59.8 cm³	59.8 cm³
Output shaft power¹	4.7 hp	4.7 hp	4.7 hp
Torque, max.	3.44 Nm	3.44 Nm	3.44 Nm
Torque, max. at rpm	7,800 rpm	7,800 rpm	7,800 rpm
Clutch engagement speed (±120)	4,100 rpm	4,100 rpm	4,100 rpm
Electrode gap	0.02 in	0.02 in	0.02 in
Idling speed	2,800 rpm	2,800 rpm	2,800 rpm
Ignition module air gap	0.01 in	0.01 in	0.01 in
Maximum power speed	9,600 rpm	9,600 rpm	9,600 rpm
Oil pump type	Adjustable flow	Adjustable flow	Adjustable flow
Spark Plug	NGK CMR6H	NGK CMR6H	NGK CMR6H
Equipment
Recommended bar length, min	15 in	15 in	15 in
Pitch	3/8"	3/8"	3/8"
Recommended bar length, max	28 in	28 in	28 in
Chain type	C83	C83	C85
Bar length	50 cm	45 cm	50 cm
Bar length (inch)	20 in	18 in	20 in
Sprocket type	Rim 7	Rim 7	Rim 7
Gauge	.050"	.050"	.058"
Dimensions
Weight (excl. cutting equipment)	13.4 lbs	13.4 lbs	13.4 lbs
Sound and noise
Sound pressure level at operators ear	107 dB(A)	107 dB(A)	107 dB(A)
Sound power level, guaranteed (LWA)	118 dB(A)	118 dB(A)	118 dB(A)
Sound power level, measured	116 dB(A)	116 dB(A)	116 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle	4.5 m/s²	4.5 m/s²	4.5 m/s²
Equivalent vibration level (ahv, eq) front handle	4 m/s²	4 m/s²	4 m/s²
Lubricant
Oil tank volume	0.7 US pint	0.7 US pint	0.7 US pint
Lubricant type (Engine)	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1	Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)²	778 g/kWh	778 g/kWh	778 g/kWh
