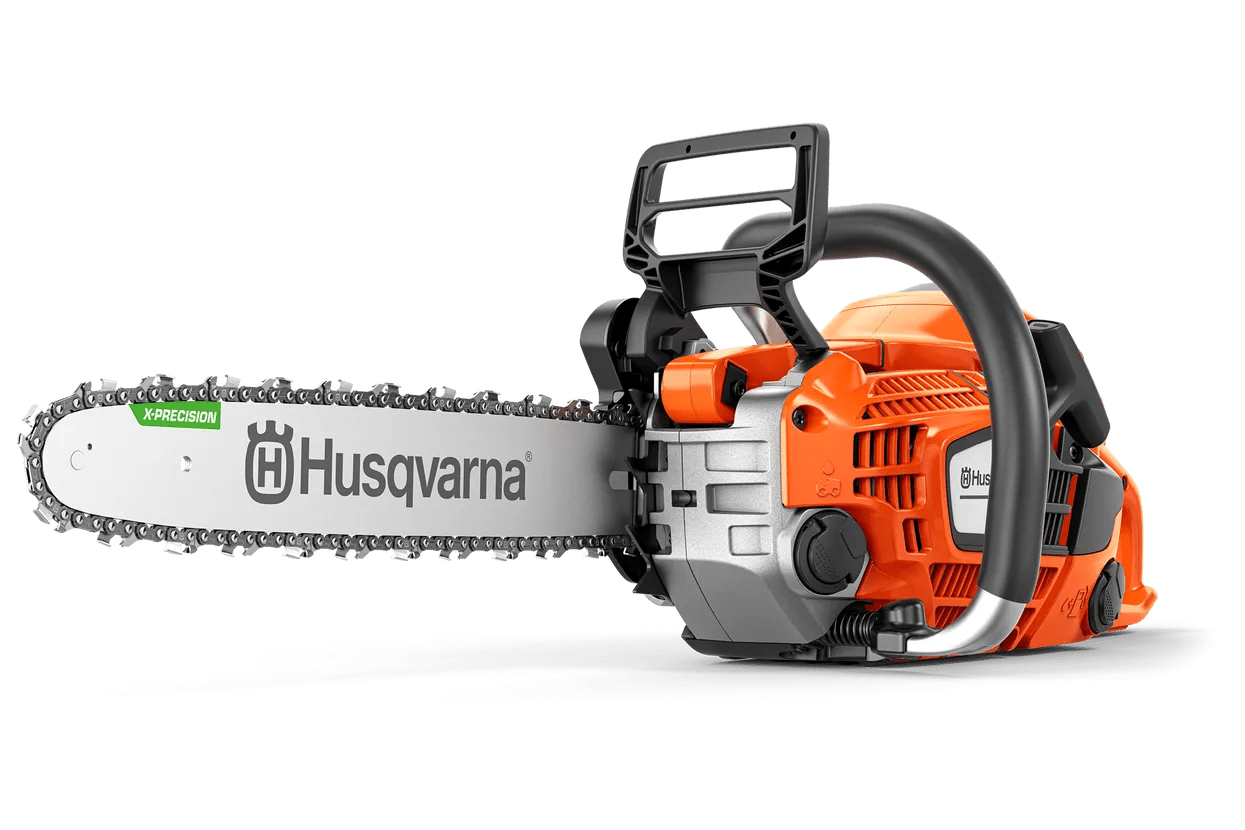

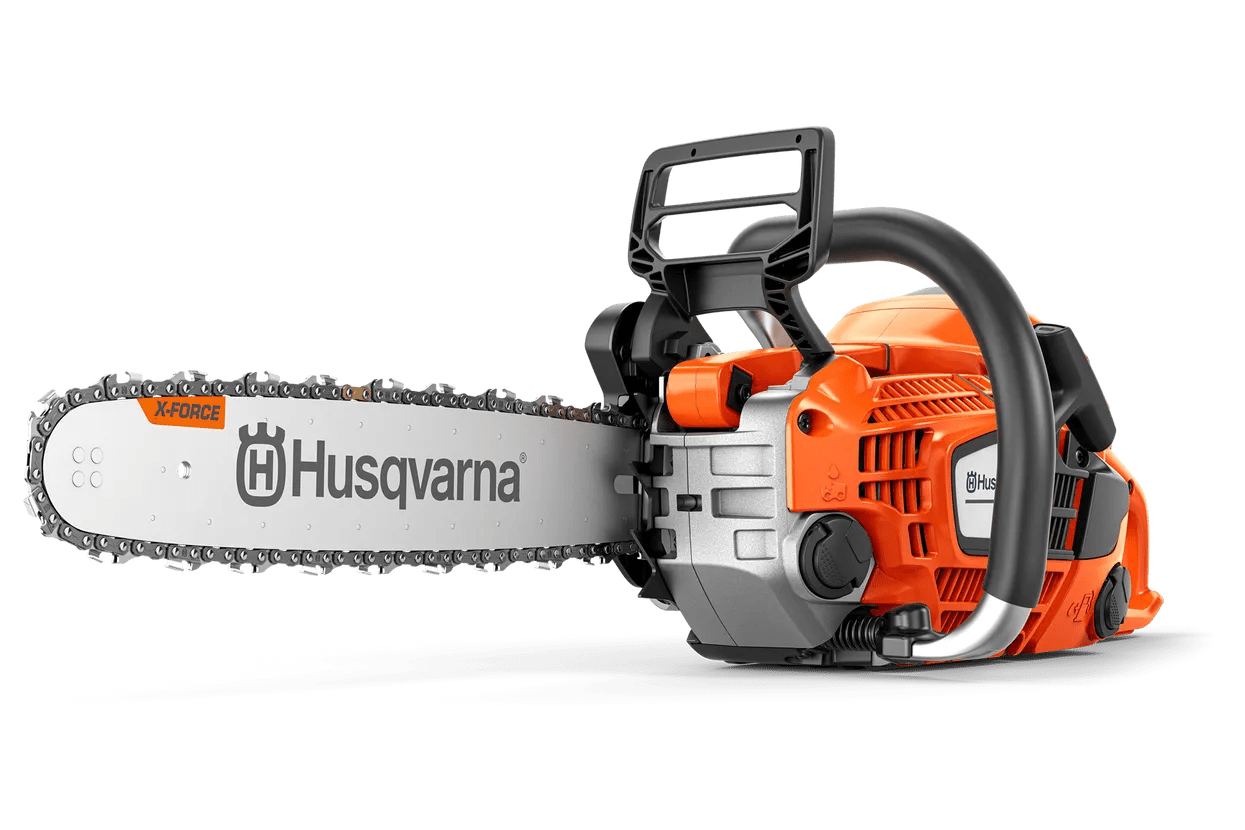

HUSQVARNA 540 XP® Mark III

HusqvarnaSKU: HUS-970510114
Bar Length: 14" .325 mini
Price:
$639.99
Stock:
Call to Order

Available for store pickup and local delivery only

Book now
 More payment options

Pickup currently unavailable at Affton Lawn Equipment

Category: Chainsaws

Primary Use: Commercial

Size:

Power Type: Gas

Description

Product Highlights

Easy to start and maneuver

Husqvarna 540 XP® Mark III is a nimble and lightweight gas chainsaw in the 40cc class, designed for professional tree care and thinning operations. The powerful engine combined with the optimal choice of SP21G or S93G chain delivers impressive cutting capacity with fast acceleration. The easy, reliable starts – cold as well as hot – and smooth maneuverability make this chainsaw a favorite for any tree care team.

Specifications
Engine
14" SP21G SN .325mini
SKU: 970 51 01‑14
16" SP21G SN .325mini
SKU: 970 51 01‑16
14" S93G SN 3/8mini
SKU: 970 51 80‑14
16" S93G SN 3/8mini
SKU: 970 51 80‑16
Chain speed at max power 66.4 fts 66.4 fts 65.6 fts 65.6 fts
Cylinder displacement 39.1 cm³ 39.1 cm³ 39.1 cm³ 39.1 cm³
Output shaft power1
2.6 hp 2.6 hp 2.6 hp 2.6 hp
Torque, max. 1.9 Nm 1.9 Nm 1.9 Nm 1.9 Nm
Torque, max. at rpm 7,500 rpm 7,500 rpm 7,500 rpm 7,500 rpm
Clutch engagement speed (±120) 4,400 rpm 4,400 rpm 4,400 rpm 4,400 rpm
Electrode gap 0.03 in 0.03 in 0.03 in 0.03 in
Idling speed 3,000 rpm 3,000 rpm 3,000 rpm 3,000 rpm
Ignition module air gap 0.01 in 0.01 in 0.01 in 0.01 in
Maximum power speed 10,200 rpm 10,200 rpm 10,200 rpm 10,200 rpm
Oil pump type Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle
Spark Plug NGK CMR7H NGK CMR7H NGK CMR7H NGK CMR7H
Equipment
Recommended bar length, min 12 in 12 in 12 in 12 in
Pitch .325" mini .325" mini 3/8" mini 3/8" mini
Recommended bar length, max 16 in 16 in 16 in 16 in
Chain type SP21G SP21G S93G S93G
Bar length 35 cm 40 cm 35 cm 40 cm
Bar length (inch) 14 in 16 in 14 in 16 in
Sprocket type Spur 7 Spur 7 Spur 6 Spur 6
Gauge .043" .043" .050" .050"
Dimensions
Weight (excl. cutting equipment) 9 lbs 9 lbs 9 lbs 9 lbs
Sound and noise
Sound pressure level at operators ear 103 dB(A) 103 dB(A) 103 dB(A) 103 dB(A)
Sound power level, guaranteed (LWA) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A)
Sound power level, measured 111 dB(A) 111 dB(A) 111 dB(A) 111 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle 5.1 m/s² 5.1 m/s² 5.1 m/s² 5.1 m/s²
Equivalent vibration level (ahv, eq) front handle 3.7 m/s² 3.7 m/s² 3.7 m/s² 3.7 m/s²
Lubricant
Oil tank volume 0.49 US pint 0.49 US pint 0.49 US pint 0.49 US pint
Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1
