Product Highlights
Split big logs in either horizontal or vertical position (especially good for logs that are too heavy to lift). Switch configurations in seconds without tools. DR 6.2 HP engine, 12-second cycle time. Road-towable up to 45 mph.
Horizontal-Vertical Design

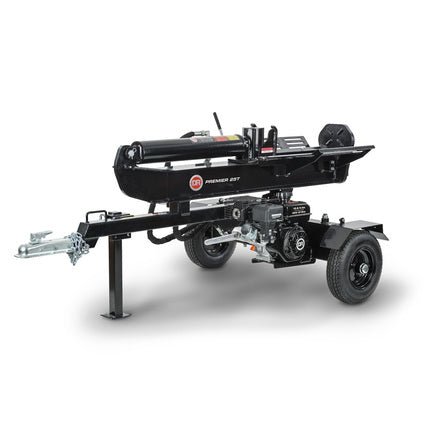

Our PREMIER 25T Horizontal/Vertical splitter is designed for easy transition between horizontal and vertical configurations. The horizontal mode is easiest for most splitting tasks. But when you come across an extra big round, you can save yourself a lot of strain by simply pulling out a pin, easily rotating the unit into its vertical position, and splitting the log on the ground...no lifting required!
An easy-starting DR 6.2 HP engine powers the 2 stage pump (11 GPM), generating 3700psi of splitting force. Logs up to 30" in diameter and up to 24" long are no problem. And the PREMIER 25T's 15-second cycle time makes it one of the fastest hydraulic splitters in its class.
Road-Towable
A 2" ball hitch with safety chains comes standard, allowing you to tow the unit at speeds up to 45 mph on its big 16" DOT-approved tires. The jackstand folds up for transport, locking into place with a simple cotter pin.
Specifications
| Dimensions |
| Height |
40.6" |
| Length |
89.5" |
| Shipping Weight |
515 lbs |
| Wedge Height |
7" |
| Weight |
440 lbs |
| Width |
51.3" |
| Shipping Dimensions |
71"L x 27"W x 20"H |
| Working Height |
30" |
| Engine |
| Air Filter |
Dual Element |
| Cooling Methods |
Air |
| Displacement |
212cc |
| Engine Type |
OHV |
| Horsepower |
6.2 HP |
| Lubrication |
Splash |
| Make |
DR |
| Number Of Cylinders |
1 |
| Oil Capacity |
16.9 oz |
| Oil Type |
SAE 30W HD |
| RPM Speeds |
3600 |
| Starting Type |
Manual |
| Fuel_System |
| Fuel Capacity |
0.8 gal |
| General |
| CARB Certified |
Yes |
| Hydraulics |
| Hydraulic Pressure |
3700 PSI MAX |
| Pump |
2 stage / 11-13 gpm (max) |
| Reservoir |
4 gal |
| Wheels_Tires |
| Number of Tires |
2 |
| Tire Size |
16" x 4.8" Tube Tires |
| Wheel |
Steel Wheel with Taper Roller Bearings |
| Warranty |
| Engine Warranty |
2 Year Residential, 1 Year Commercial |
| Machine Warranty |
2 Year Residential, 90 Day Commercial |
| Towing |
| Hitch Type |
2" Ball |
| Max Highway Speed |
45 MPH |
| Towable |
Yes |
| Splitting |
| Average Cycle Time |
12 Seconds |
| Max Log Diameter |
30" |
| Max Log Length |
24" |
| Splitting Force |
25 ton |
